Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always work from the side of or under air bag module.

Install front passenger air bag module on steering member.
- Ensure harness is not caught between rear of air bag module and steering member.
Install glove box assembly. (Glove box lid is open.)

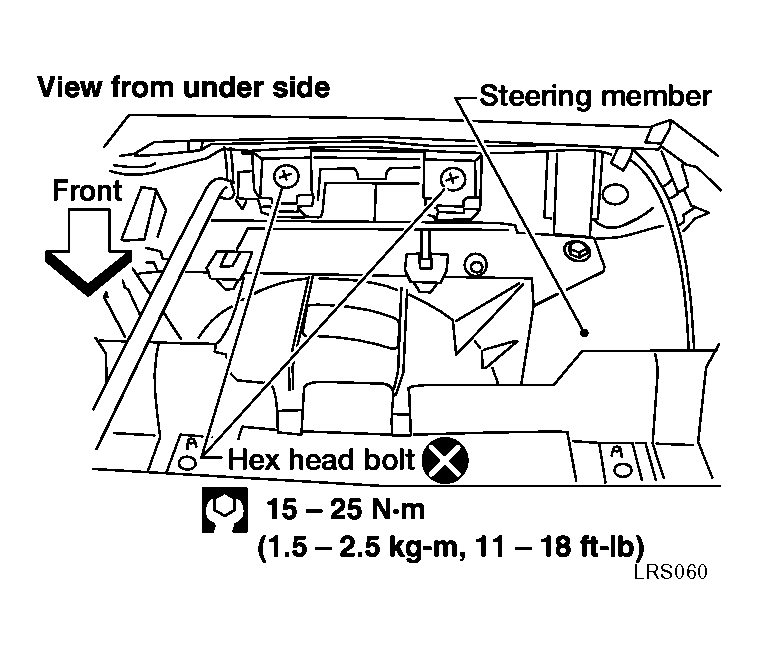

Fig 1: Installing Front Passenger Air Bag Module With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect front passenger air bag module connector to air bag harness connector.

Fig 2: Installing Front Passenger Air Bag Module Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Close the glove box lid.
Connect both battery cables.
Go to "SRS OPERATION CHECK " and perform self-diagnosis to ensure entire SRS operates properly. (Use CONSULT-II or warning lamp check.)
