Base And Mid Level System

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

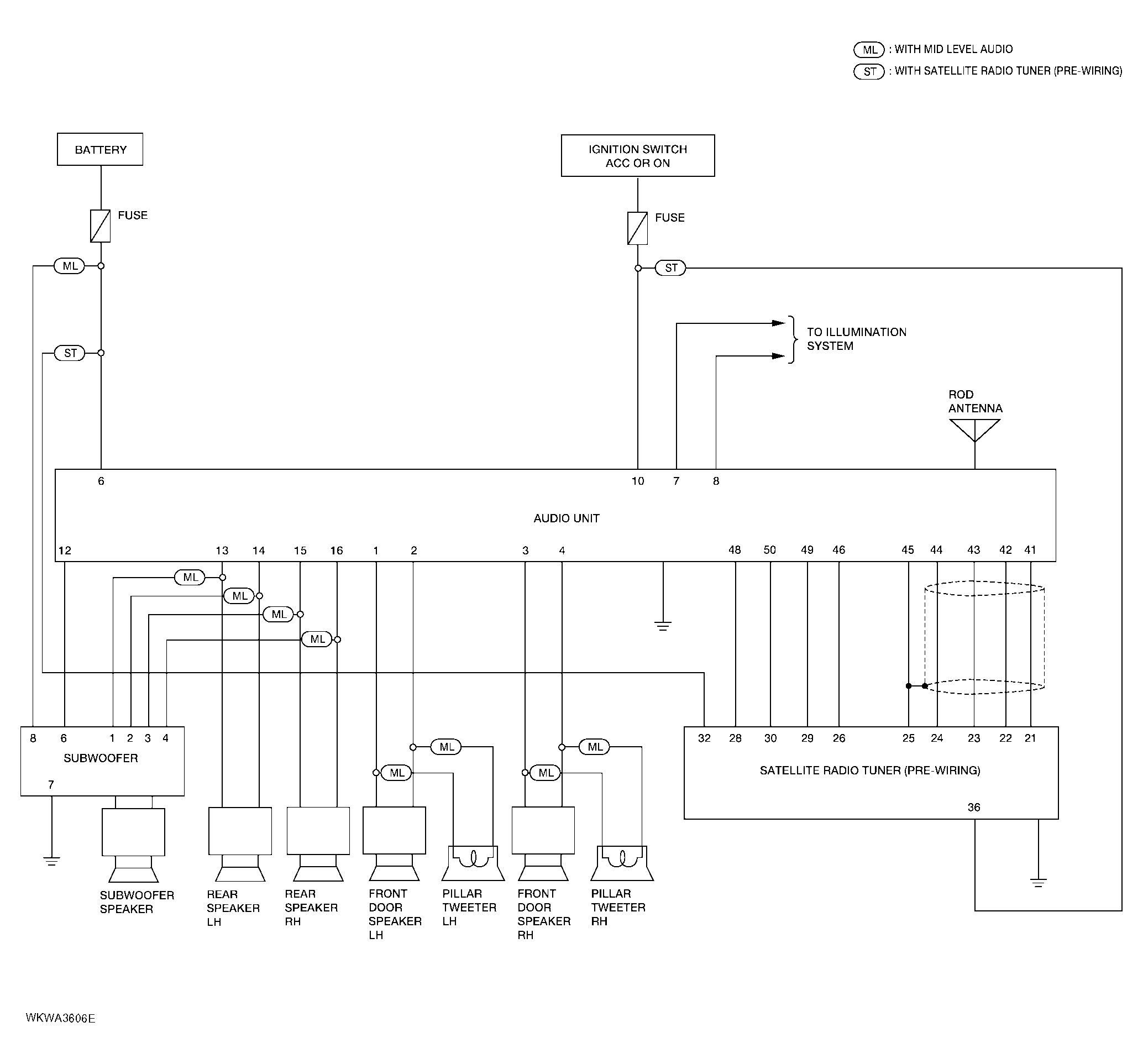

Fig 1: BASE And MID LEVEL System Schematic Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
