Preliminary Check

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

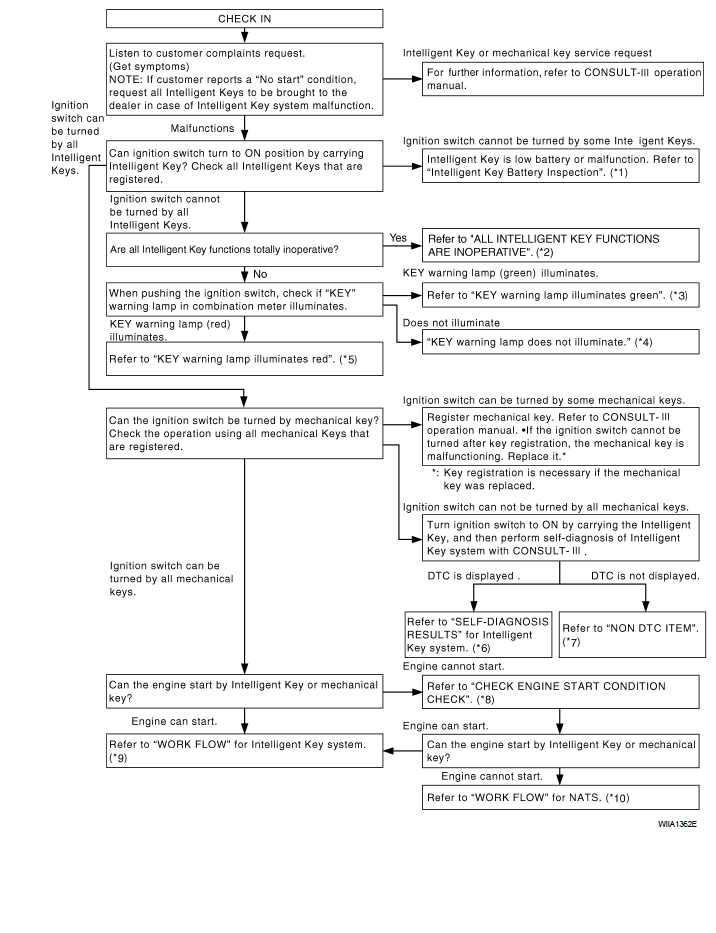

Fig 1: Trouble Diagnosis Flow Chart

G05924682

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Intelligent Key Battery Replacement

*2: Trouble Diagnosis Symptom Chart

*3: Trouble Diagnosis Symptom Chart

*4: Trouble Diagnosis Symptom Chart

*5: Trouble Diagnosis Symptom Chart

*6: CONSULT-III Application Item

*7: Trouble Diagnosis Symptom Chart

*8: Trouble Diagnosis Symptom Chart
