Mid System: Notes

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

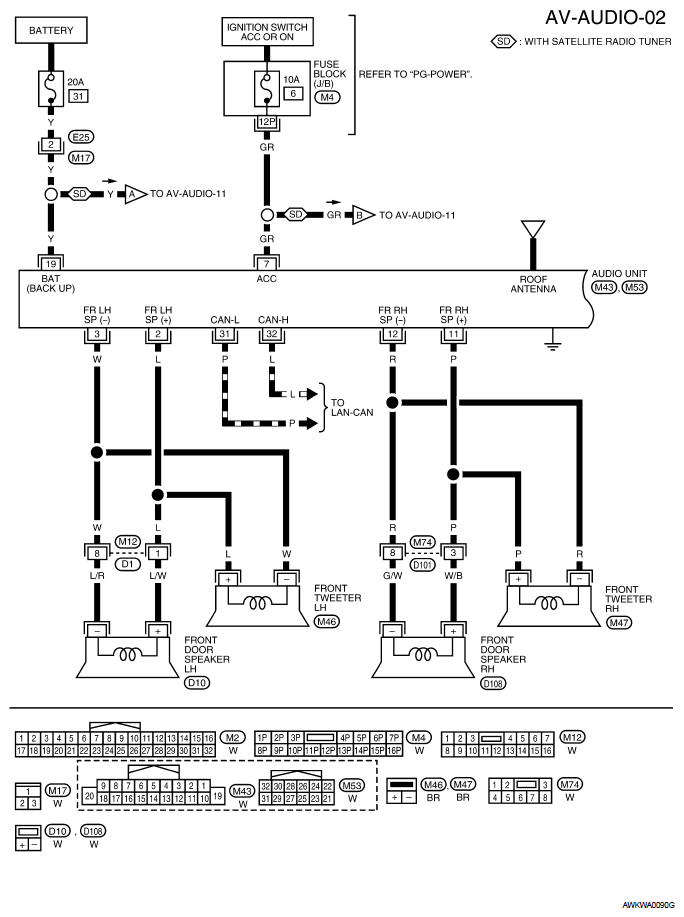

Fig 1: AV-AUDIO-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

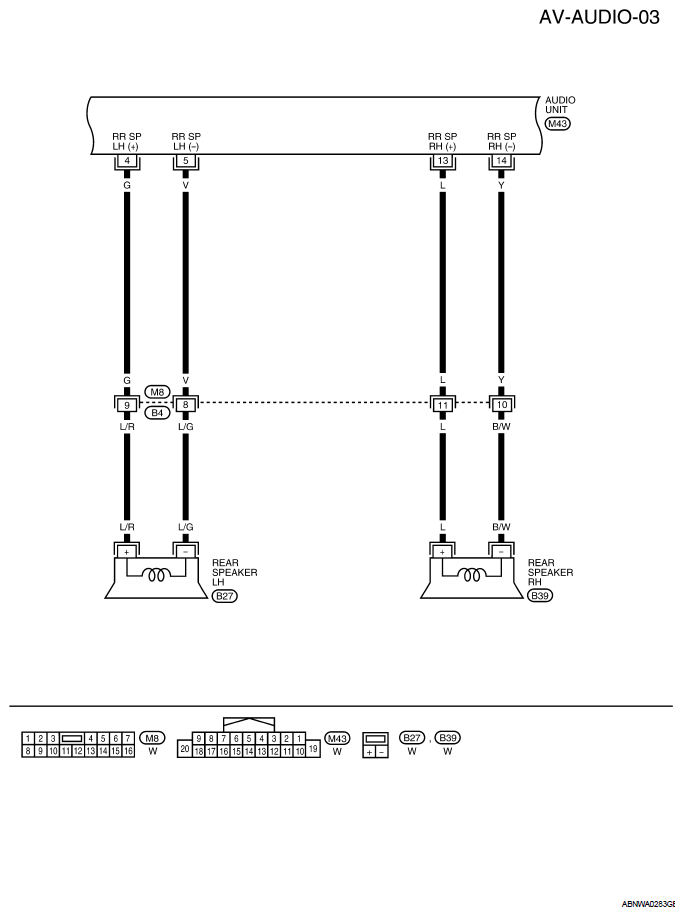

Fig 2: AV-AUDIO-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
