Wiring Diagram - INF/D -: Notes

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

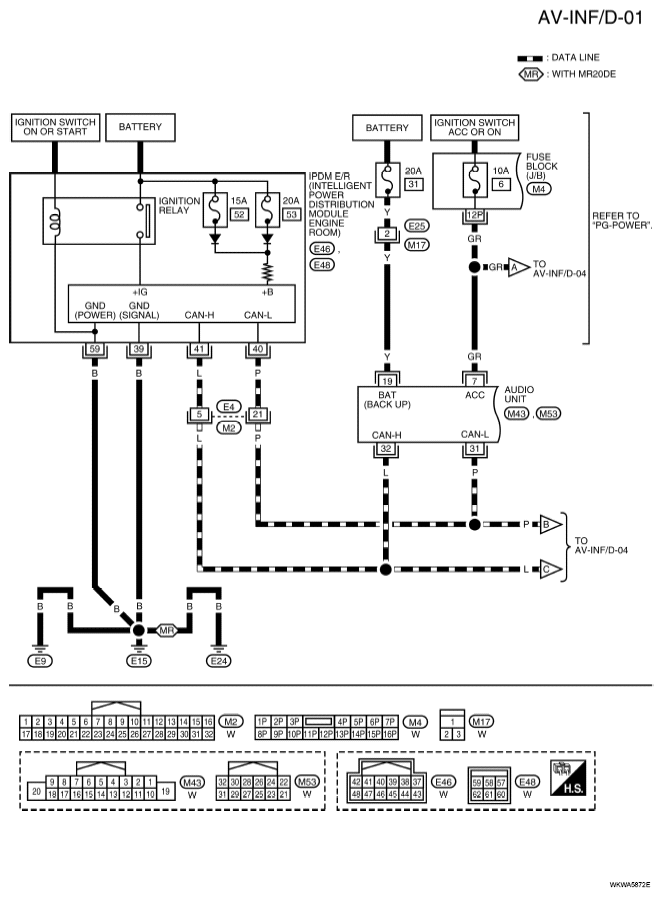

Fig 1: AV-INF/D-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
