Work Flow Chart

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

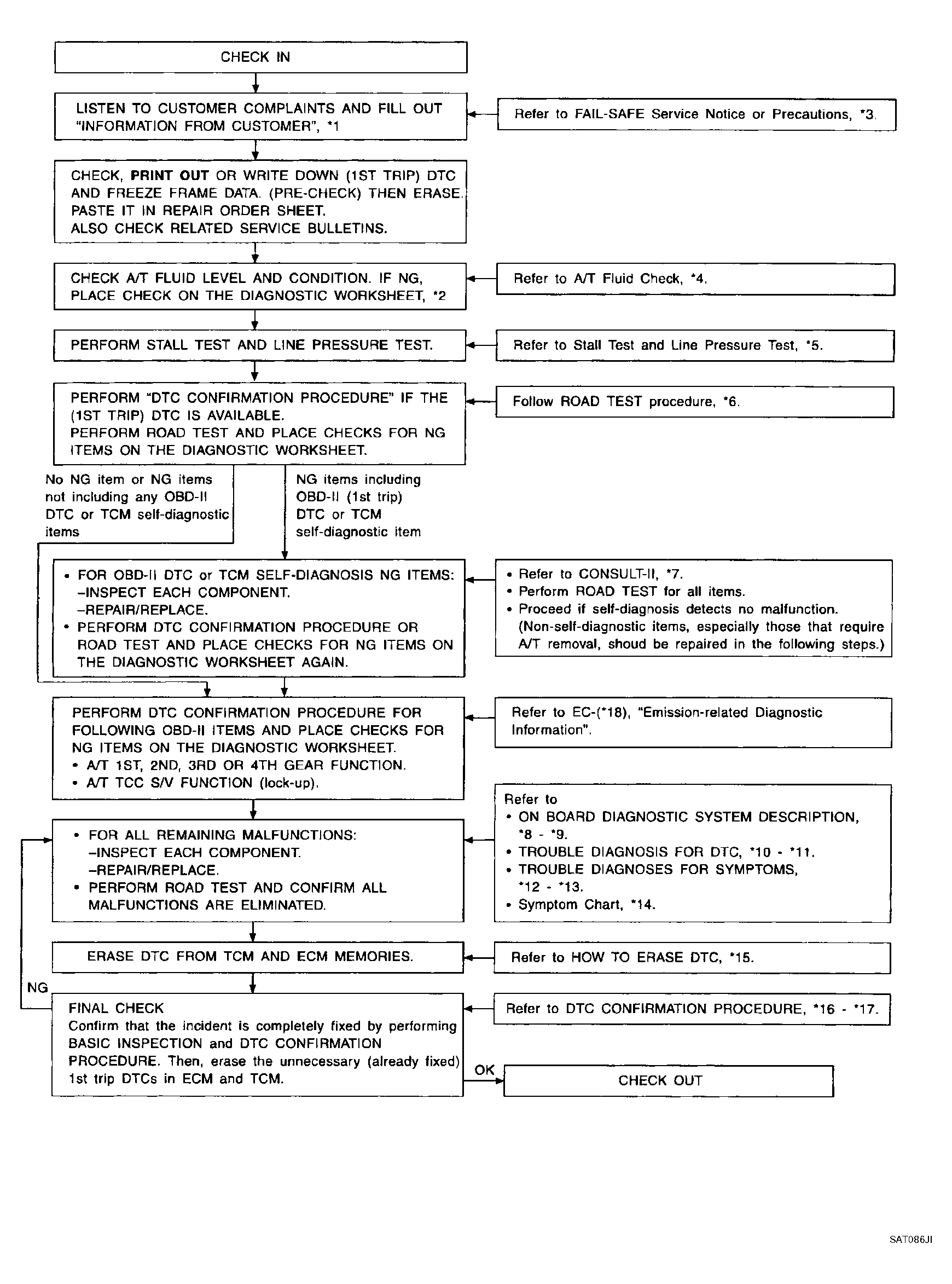

Fig 1: Work Flow Chart
G04193717Courtesy of NISSAN MOTOR CO., U.S.A.
WORK FLOW CHART REFERENCES

*1.Information from Customer
*2. Diagnostic Worksheet
*3. FAIL-SAFE
*4. A/T Fluid Check
*5. Stall Test , Line Pressure Test
*6. Road Test
*7. CONSULT-II
*8. ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
*9. TROUBLE DIAGNOSIS - INTRODUCTION
*10. DTC P0705 PARK/NEUTRAL POSITION SWITCH
*11. TROUBLE DIAGNOSIS FOR SYMPTOMS
*12. TROUBLE DIAGNOSIS FOR SYMPTOMS
*13. A/T SHIFT LOCK SYSTEM
*14. Symptom Chart
*15. HOW TO ERASE DTC
*16. Diagnostic Trouble Code (DTC) Confirmation Procedure
*17. Diagnostic Trouble Code (DTC) Confirmation Procedure
*18. EMISSION-RELATED DIAGNOSTIC INFORMATION
