CONSULT-III Data Link Connector (DLC) Circuit: Notes

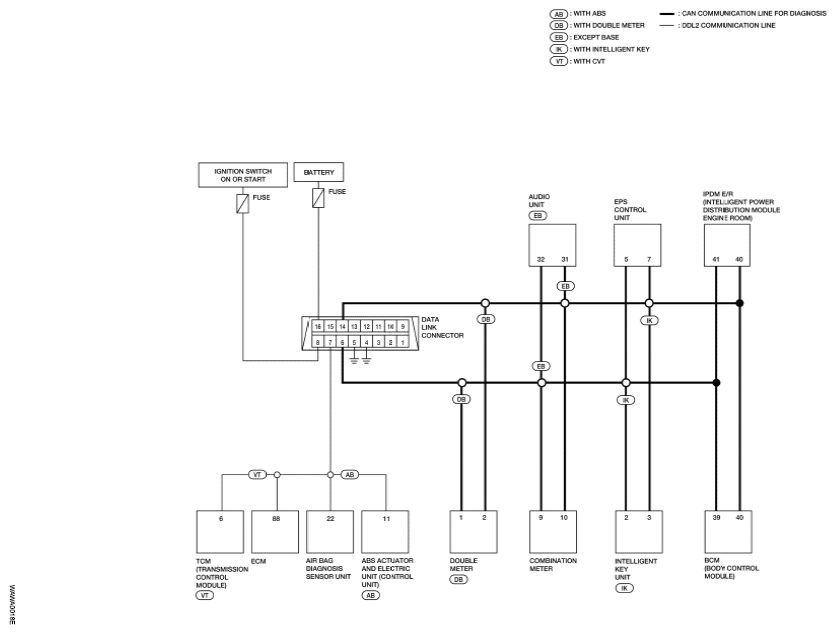

Fig 1: CONSULT-II Data Link Connector (DLC) Circuit Diagram
G04924443
