Consult-III Checking System
›
Function and System Application
Function and System Application

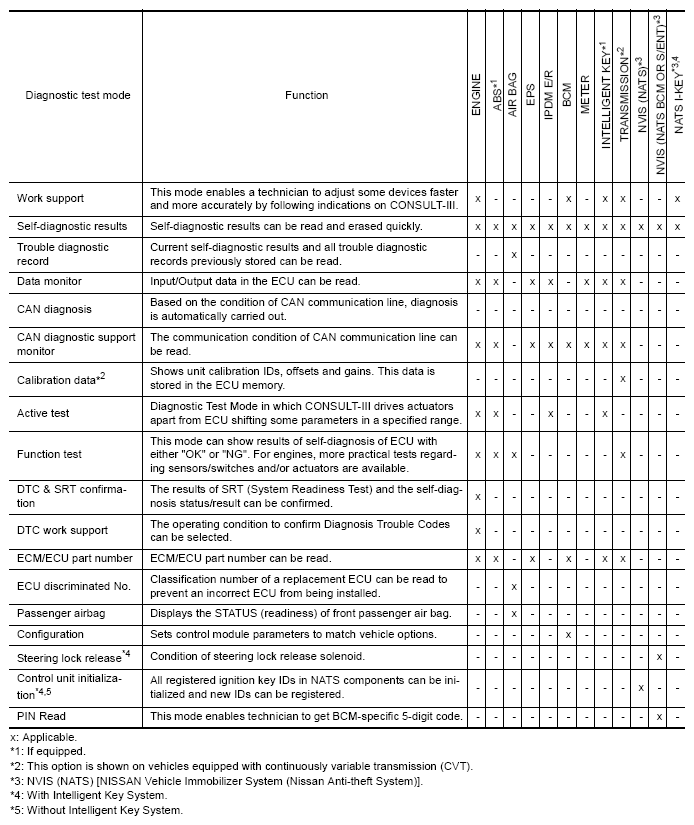

Fig 1: Diagnostic Test Mode Function Chart
