Removal and Installation: Components

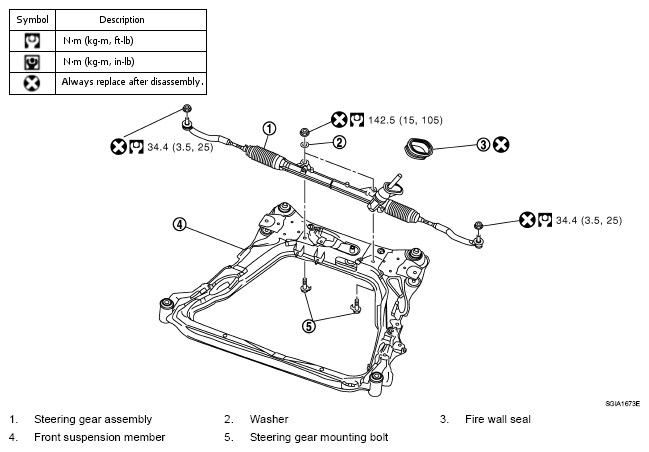

Fig 1: Power Steering Gear Replacement Components With Torque Specifications

Refer to "COMPONENTS ", for the symbols in the figure.

CAUTION: Spiral cable may be cut if steering wheel turns while separating steering column assembly and steering gear assembly. Be sure to secure steering wheel using string to avoid turning.
