Cross-sectional View - RE0F10A
Cross-sectional View - RE0F10A

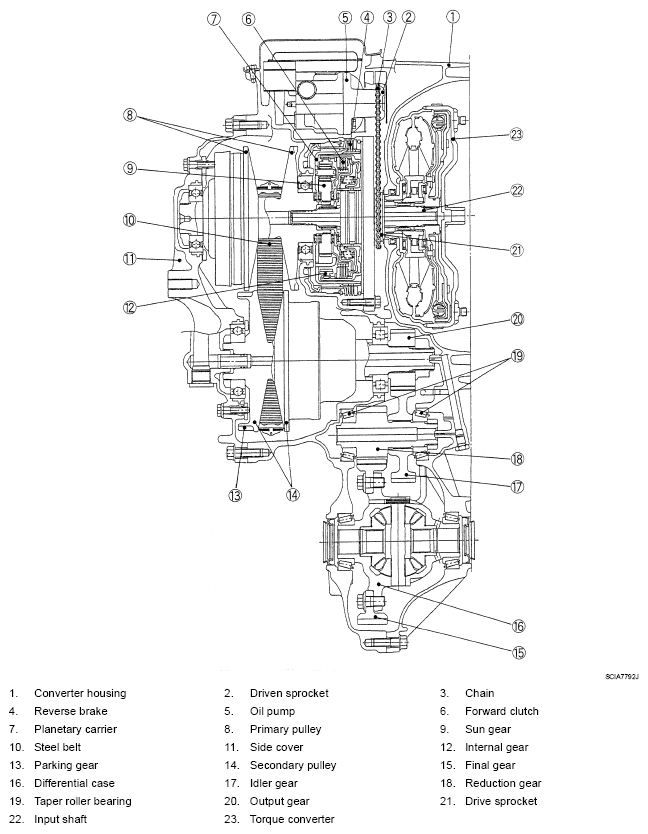

Fig 1: Cross-Sectional View - CVT SYSTEM
