Primary Speed Sensor: Components

For MR20DE, go to ENGINE MAINTENANCE (MR20DE) .

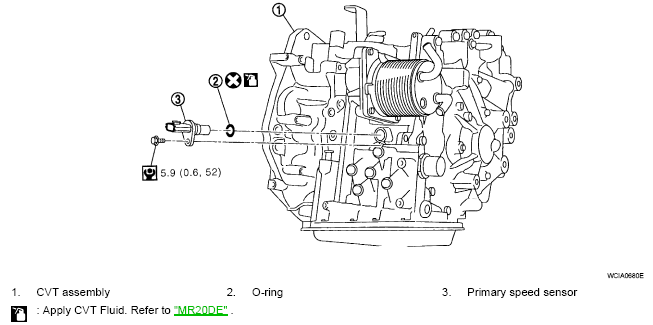

Fig 1: Primary Speed Sensor Replacement Components With Torque Specifications

CAUTION:

• Do not reuse O-ring.
• Apply CVT fluid to O-ring.
• After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to "CHECKING CVT FLUID ".
