Home › Nissan-Datsun › 2007 › Sentra SE-R › Repair and Diagnosis › Transmission › Automatic Trans › Continuously Variable Transmission (CVT) › Transaxle Assembly › Removal and Installation (MR20DE) › Components

Removal and Installation (MR20DE): Components

For Installation, go to INSTALLATION .

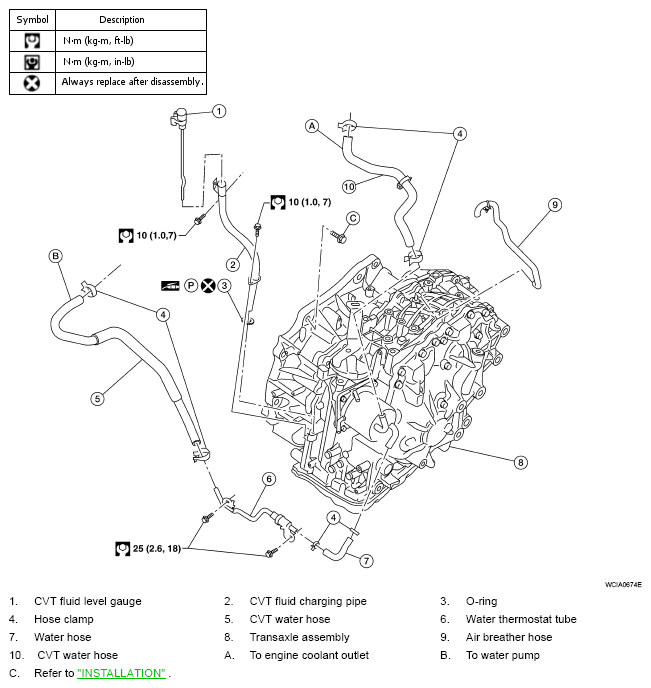

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
G04927128
