Removal and Installation (QR25DE): Components

For Installation, go to INSTALLATION .

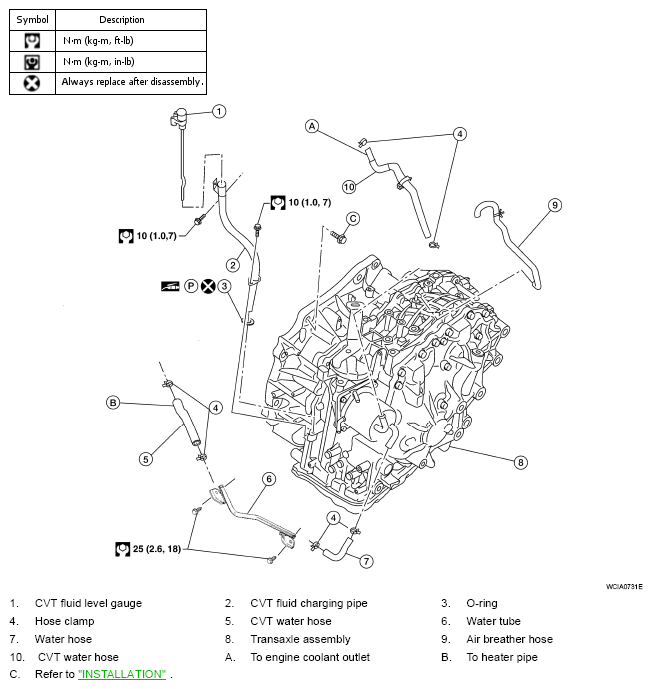

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
G04927134
