Versa SL, 4D Hatchback, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - Introduction
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram

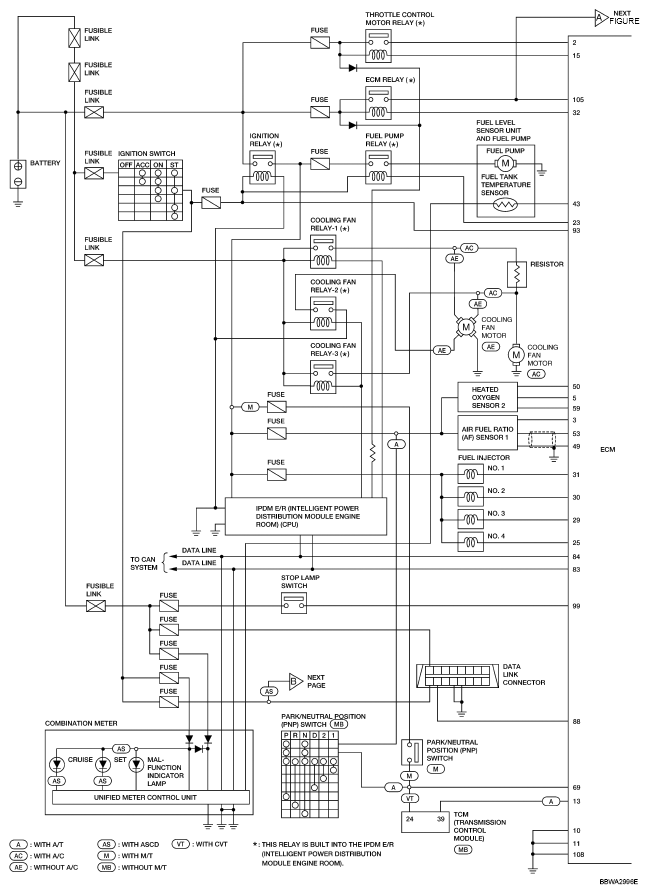

Fig 1: Trouble Diagnosis - Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

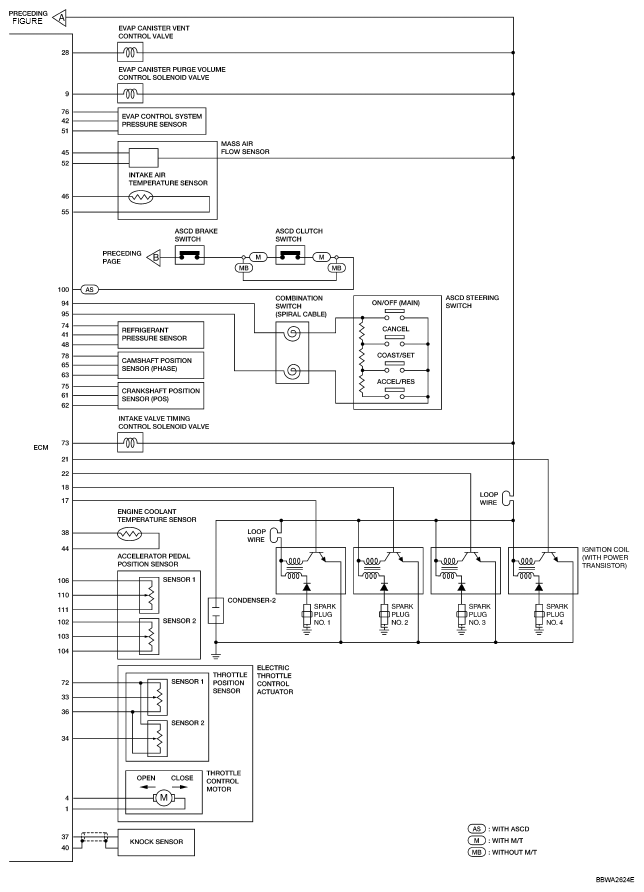

Fig 2: Trouble Diagnosis - Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
