Vacuum Hose Drawing

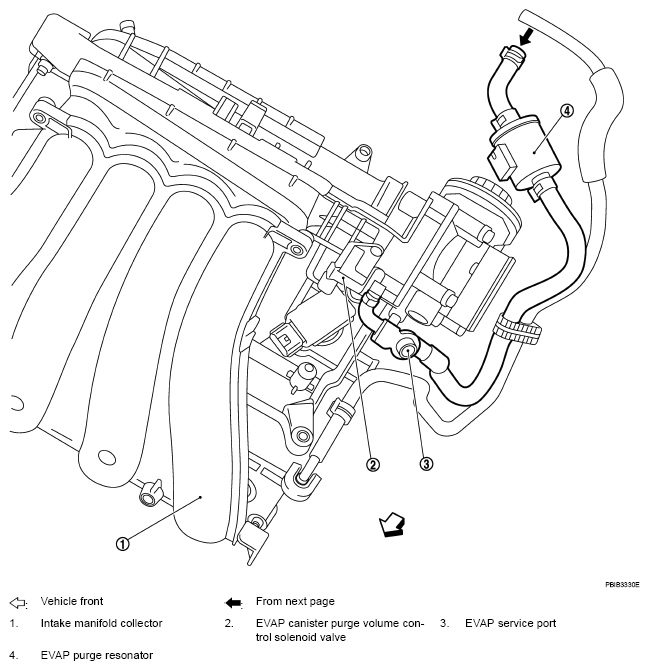

Fig 1: Identifying Evaporative Emission Line Drawing (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
