Notes
System Diagram: Notes

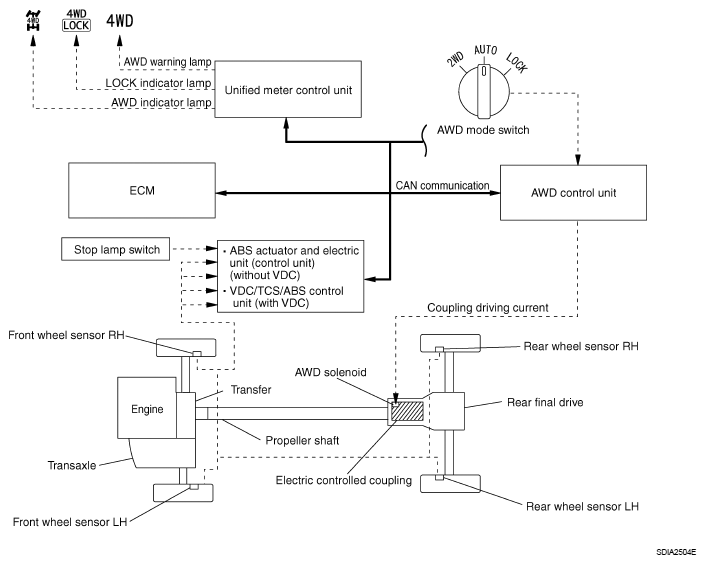

Fig 1: AWD Warning Lamp System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
