ASCD Indicator: Wiring Diagram: AWD

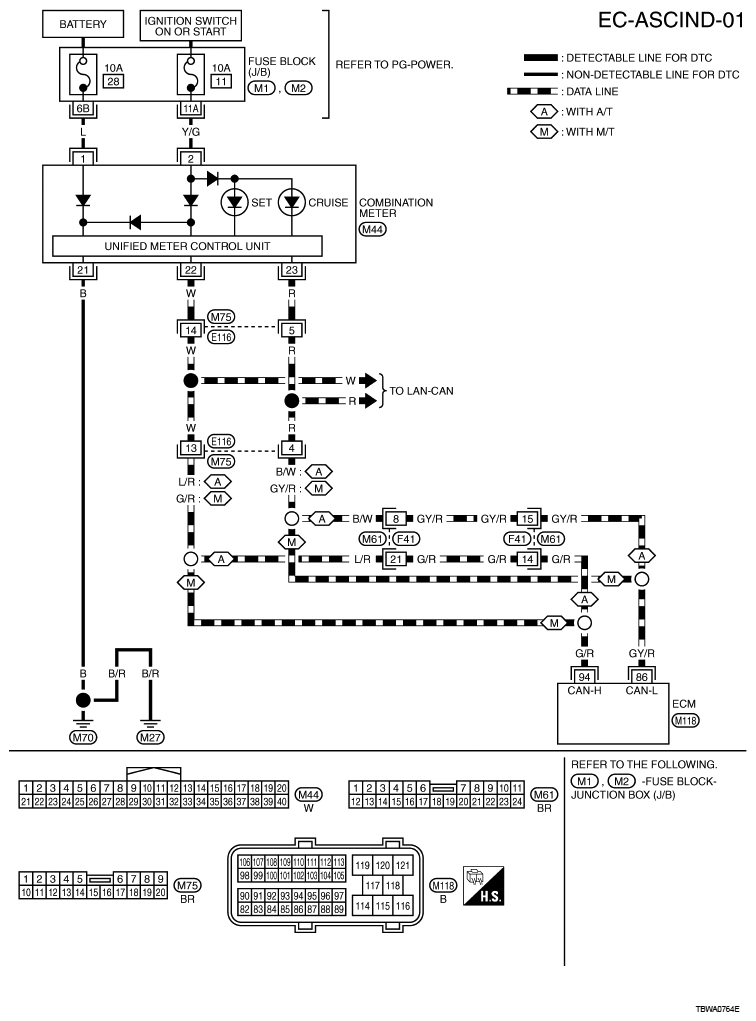

Fig 1: EC-ASCIND-01 - Wiring Diagram (AWD)
G06153037Courtesy of NISSAN MOTOR CO., U.S.A.
