Mil And Data Link Connector: Wiring Diagram: AWD

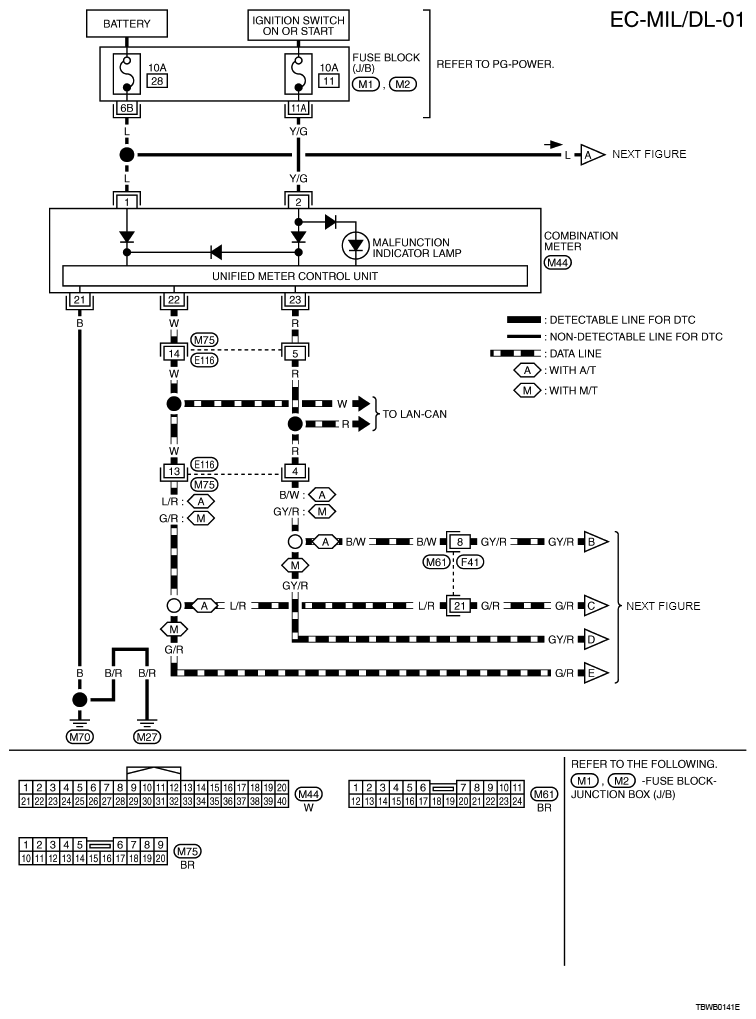

Fig 1: EC-MIL/DL-01 - Wiring Diagram (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.

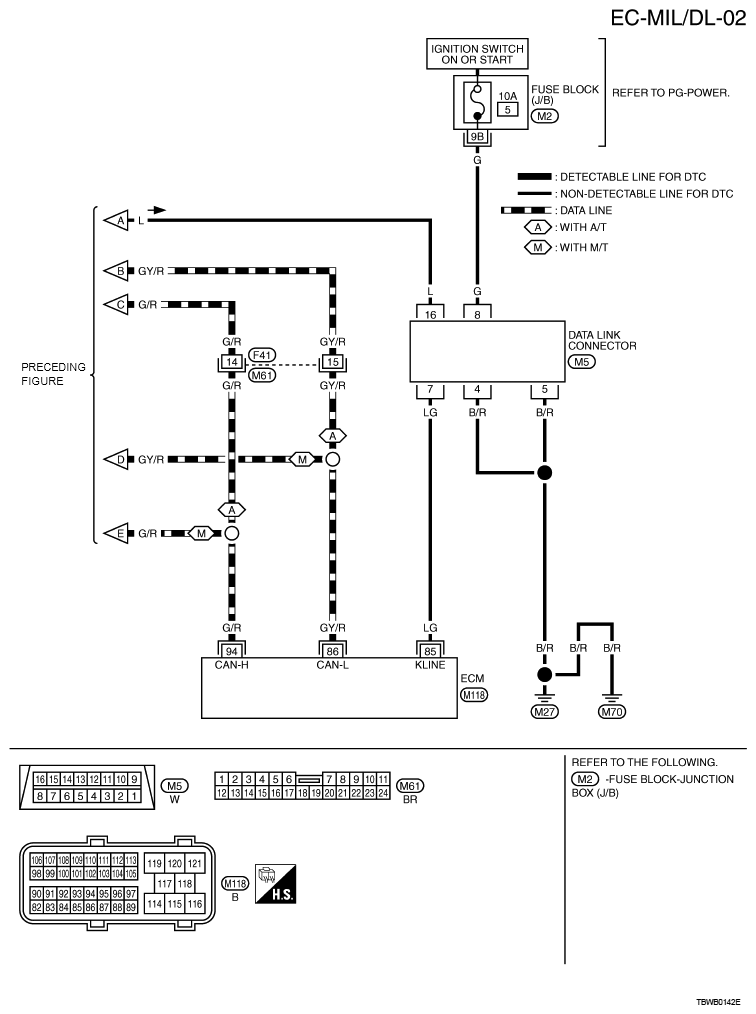

Fig 2: EC-MIL/DL-02 - Wiring Diagram (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
