Engine Control Component Parts/Control Systems Application

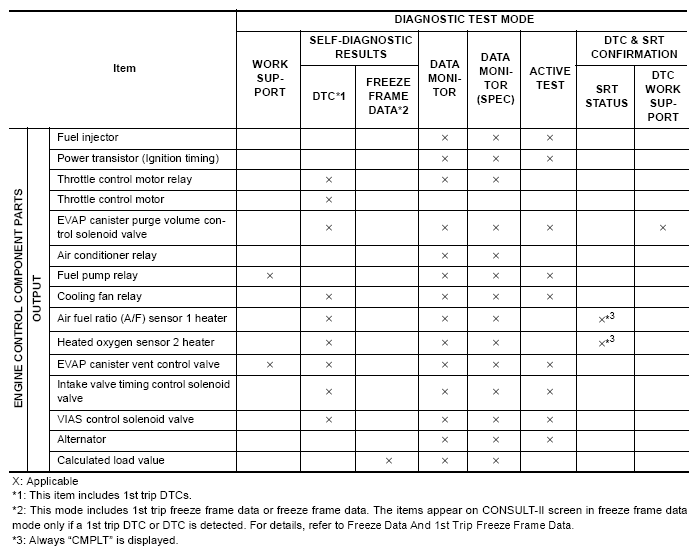

Fig 1: Engine Control Component Parts/Control Systems Application Chart

Courtesy of NISSAN NORTH AMERICA, INC.

For Freeze Frame Data And 1st Trip Freeze Frame Data, go to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .

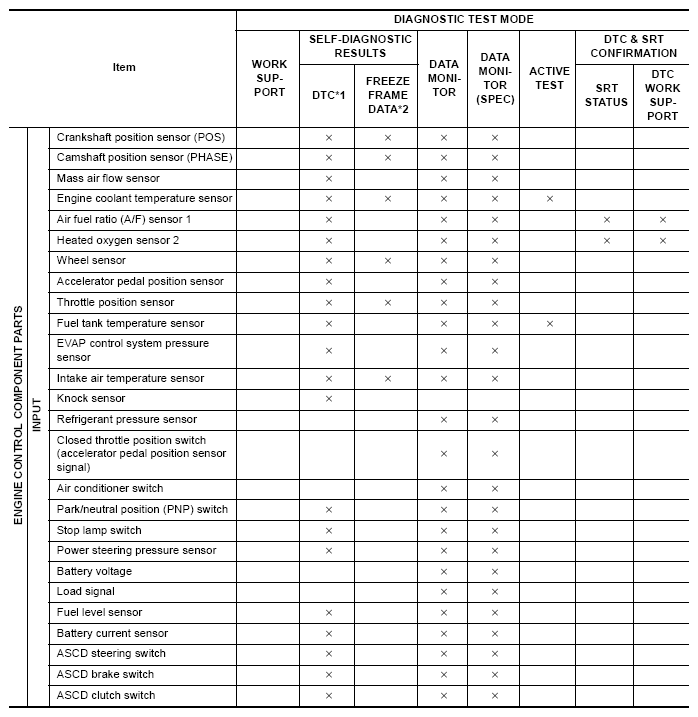

Fig 2: Engine Control Component Parts/Control Systems Application Chart

Courtesy of NISSAN NORTH AMERICA, INC.
