Engine Control System - Introduction
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram

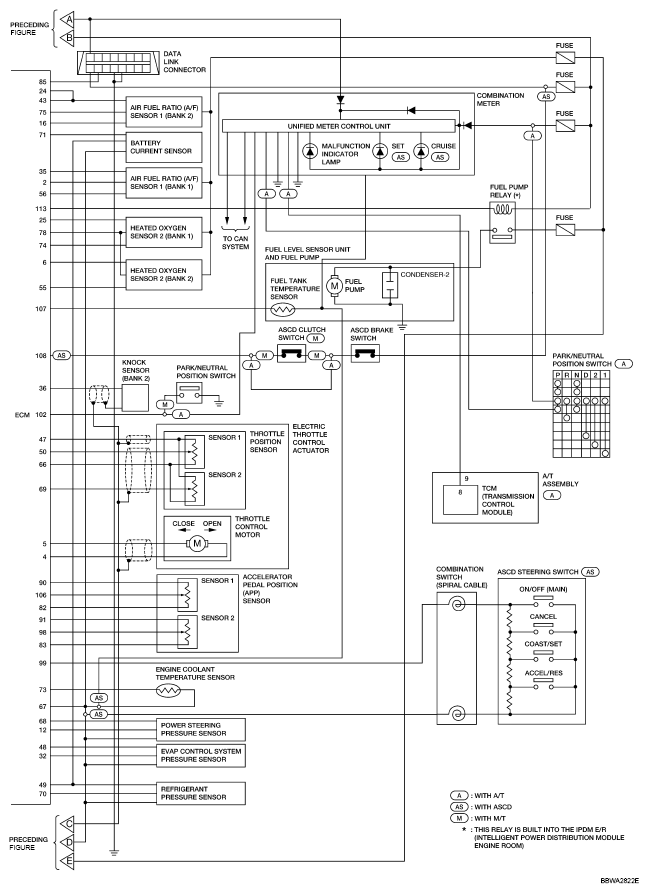

Fig 1: Engine Control System - Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

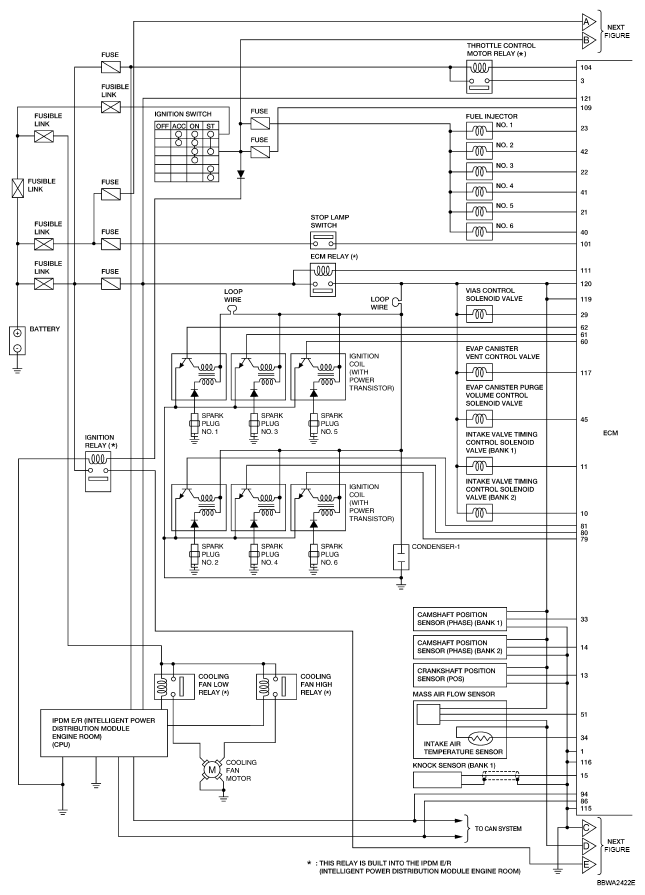

Fig 2: Engine Control System - Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
