Component Function Check

1. Turn ignition switch ON.
2. Pinch fuel feed hose (2) with two fingers.

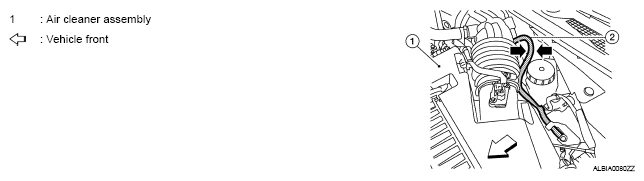

   Fig 1: Pinching Fuel Feed Hose

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

Is the inspection result normal?

YES : INSPECTION END

NO : "DIAGNOSIS PROCEDURE ".
