System - Basic Engine Control System
System - Basic Engine Control System

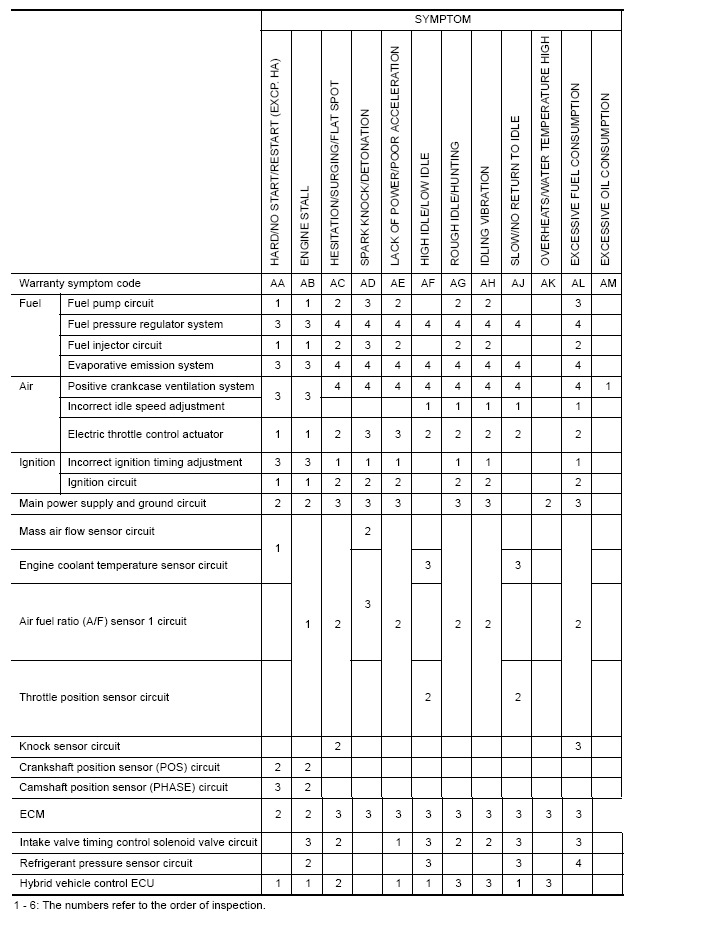

Fig 1: Engine Control System Symptoms Chart (Basic Engine Control System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
