Component Parts Location

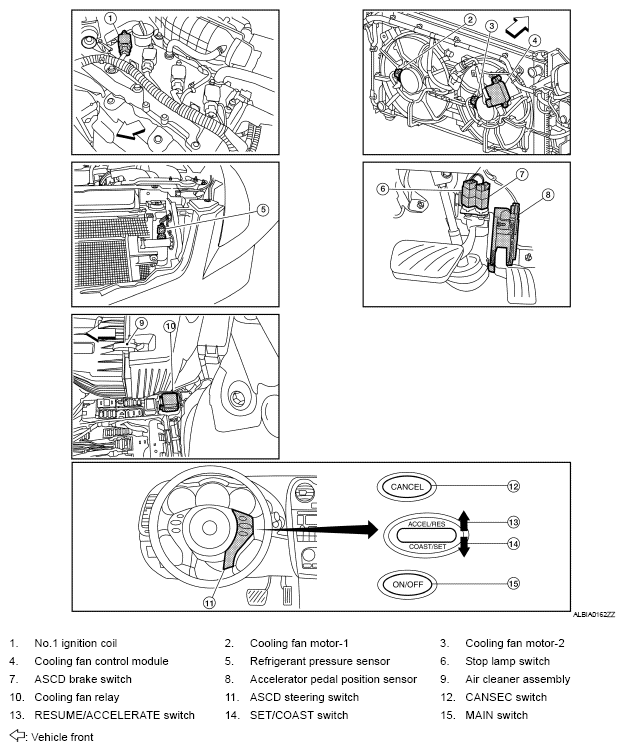

Fig 1: Identifying Automatic Speed Control Device Components Location (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Automatic Speed Control Device Components Location (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Automatic Speed Control Device Components Location (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Automatic Speed Control Device Components Location (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Automatic Speed Control Device Components Location (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Automatic Speed Control Device Components Location (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Automatic Speed Control Device Components Location (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Automatic Speed Control Device Components Location (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Automatic Speed Control Device Components Location (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Automatic Speed Control Device Components Location (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Automatic Speed Control Device Components Location (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
