Automatic Speed Control Device (ASCD)
›
System Diagram
System Diagram

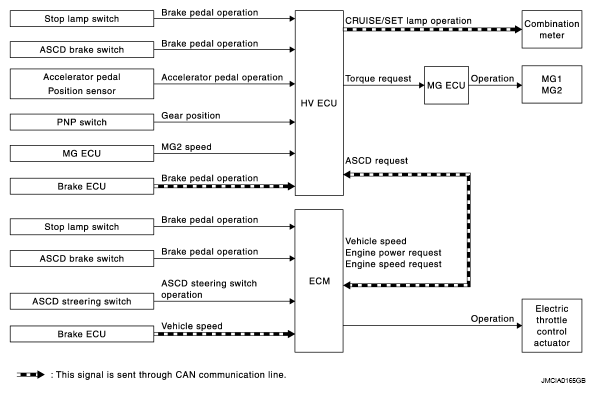

Fig 1: Automatic Speed Control Device System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
