Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application

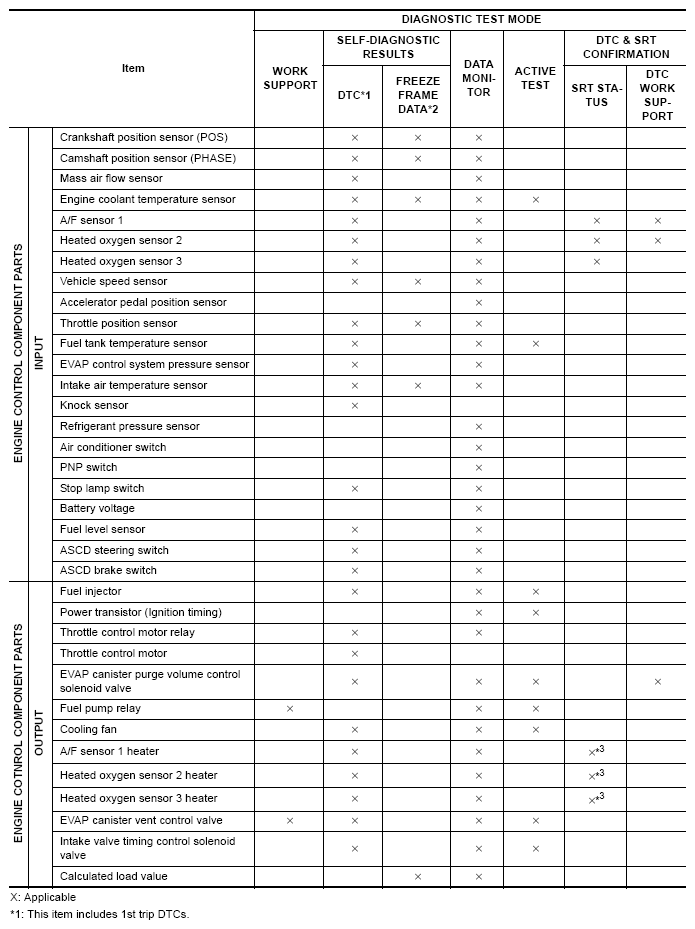

Fig 1: Engine Control Components Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
