Relay Control System
›
System Diagram
System Diagram

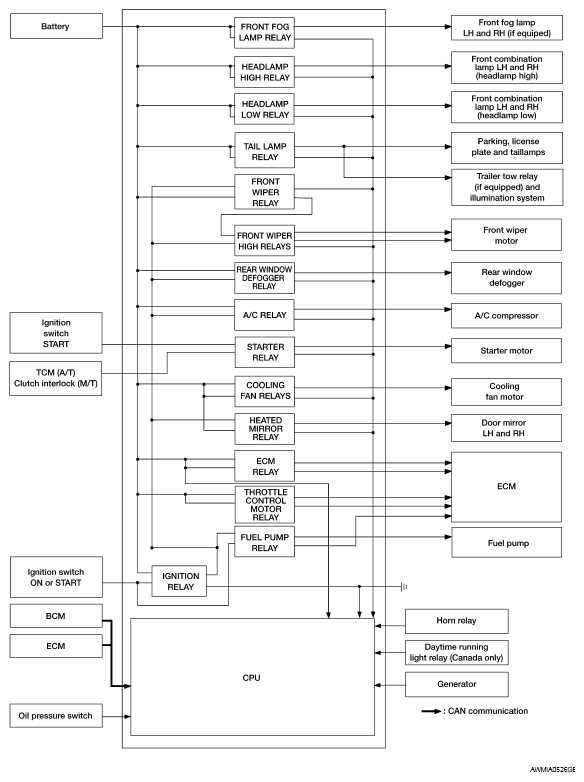

Fig 1: Identifying Relay Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
