Ignition Timing
›
Method A
Method A

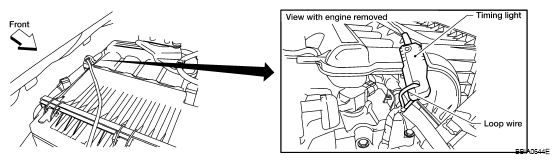

Attach timing light to loop wire as shown.
Fig 1: Attaching Timing Light To Loop Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.
Fig 2: Identifying Timing Indicator
Courtesy of NISSAN MOTOR CO., U.S.A.
