DTC P0117, P0118 ECT Sensor: Wiring Diagram

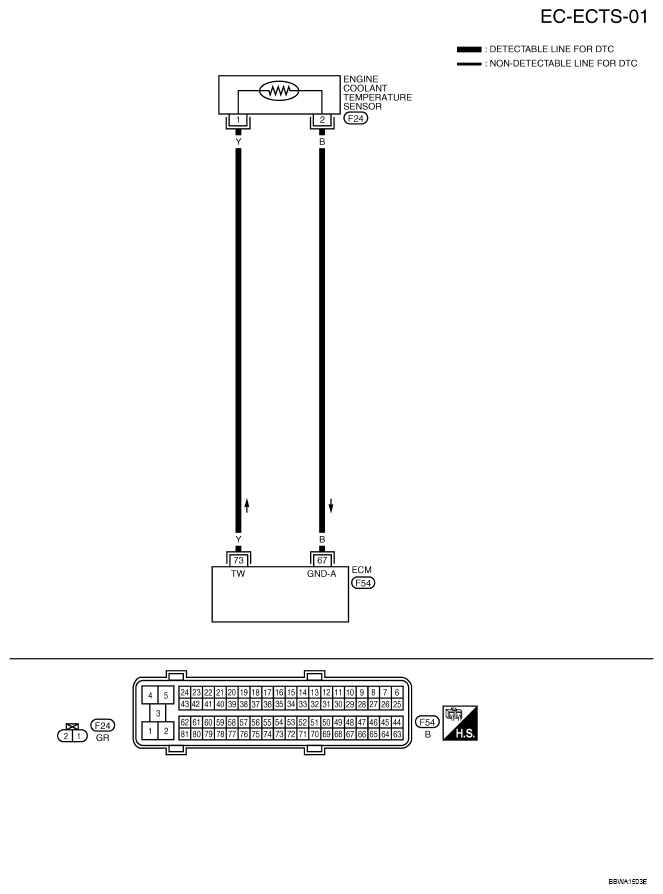

Fig 1: EC-ECTS-01 - Wiring Diagram
G04915320Courtesy of NISSAN MOTOR CO., U.S.A.
