Engine Control System - Introduction
›
Evaporative Emission System
›
Description
›
Evaporative Emission Line Drawing
Evaporative Emission Line Drawing

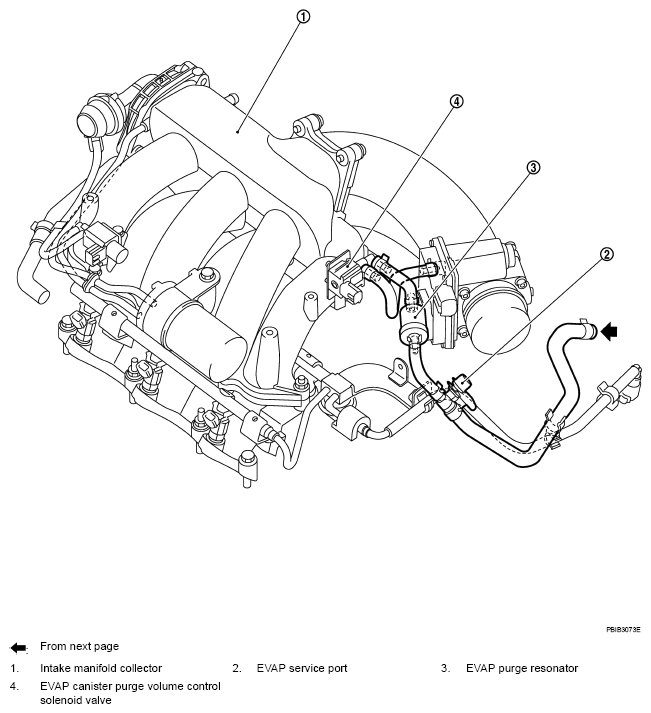

Fig 1: Identifying Evaporative Emission Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

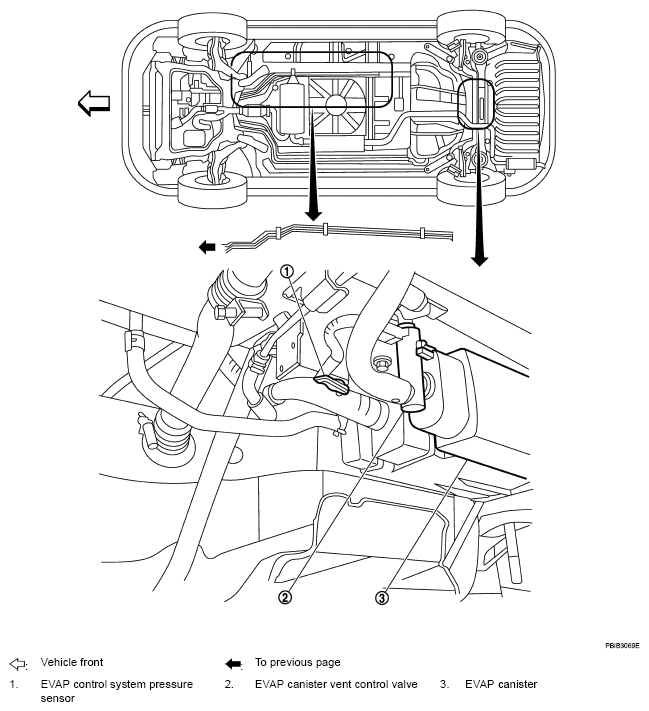

Fig 2: Identifying Evaporative Emission Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
