Home › Nissan-Datsun › 2008 › Rogue S, AWD › Repair and Diagnosis › Body & Frame › Windows › Power Window Control System › On-Vehicle Repair › Power Window Main Switch › Removal and Installation › Removal

Removal and Installation: Removal

  1. Remove the power window main switch finisher (2).

    Refer to "FRONT DOOR FINISHER : EXPLODED VIEW " and "FRONT DOOR FINISHER : REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-head screw driver (A) etc.

    :Pawl

    CAUTION: Do not fold the pawl of power window main switch finisher.
    NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).

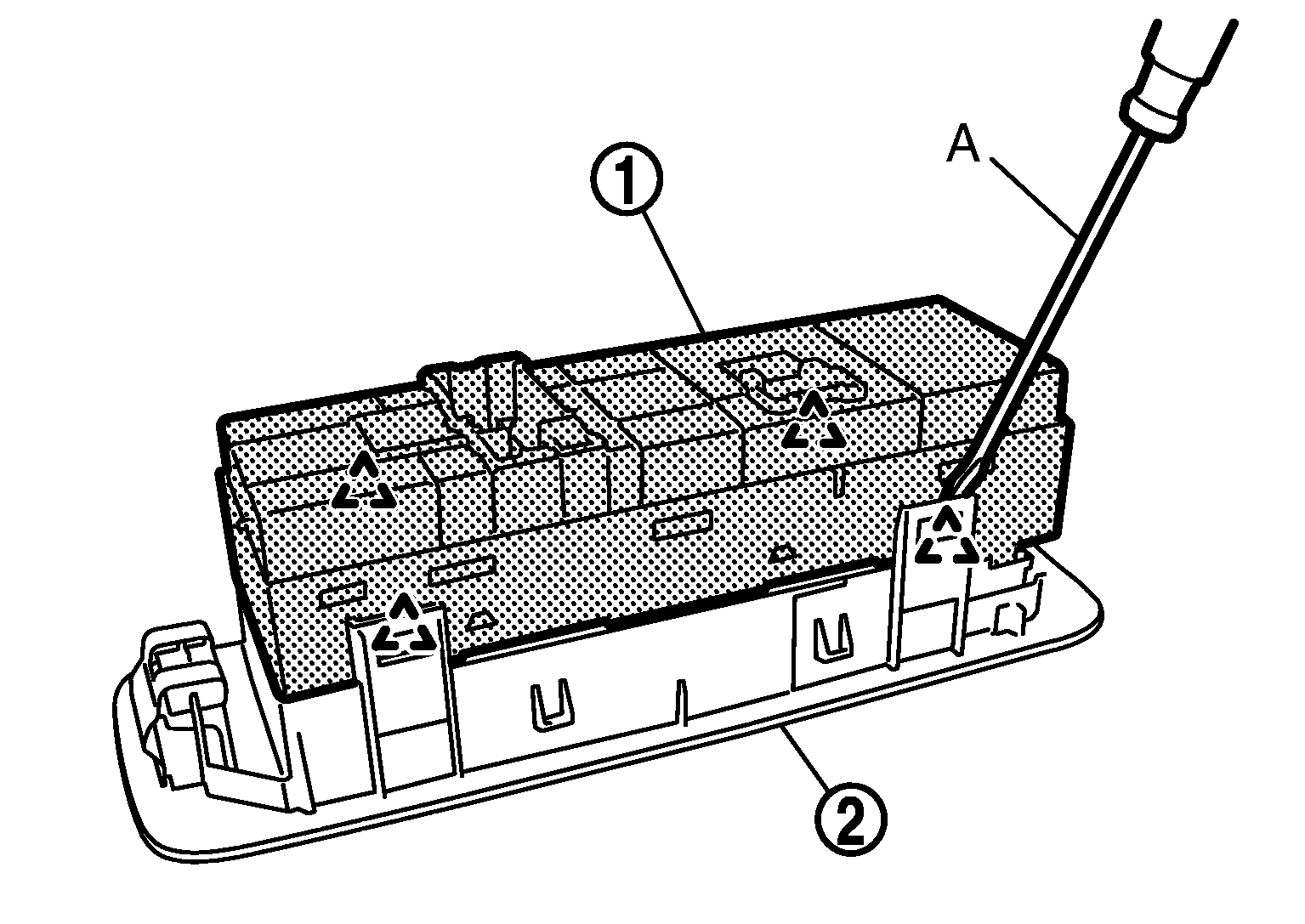

    Fig 1: Removing Power Window Main Switch Finisher
    G05372109Courtesy of NISSAN MOTOR CO., U.S.A.
