FRONT WHEEL SENSOR : Exploded View
FRONT WHEEL SENSOR : Exploded View

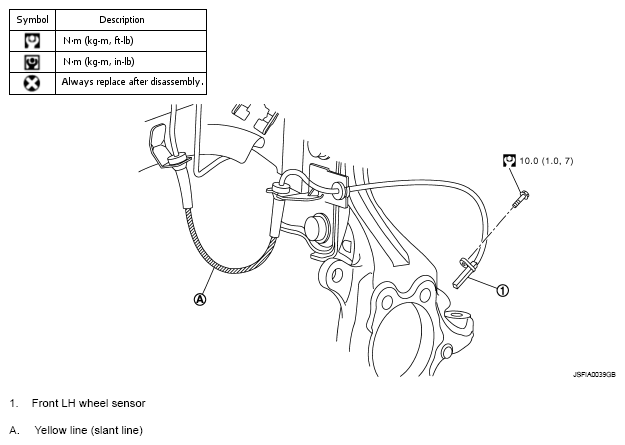

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The above figure (front side) shows left side. Right side is the mirror image.
Courtesy of NISSAN MOTOR CO., U.S.A.
