FixVault
Home
›
Nissan-Datsun
›
2008
›
Rogue S, FWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
VDC/TCS/Abs
›
On-Vehicle Repair
›
Abs Actuator And Electric Unit (Control Unit)
›
Exploded View
Exploded View

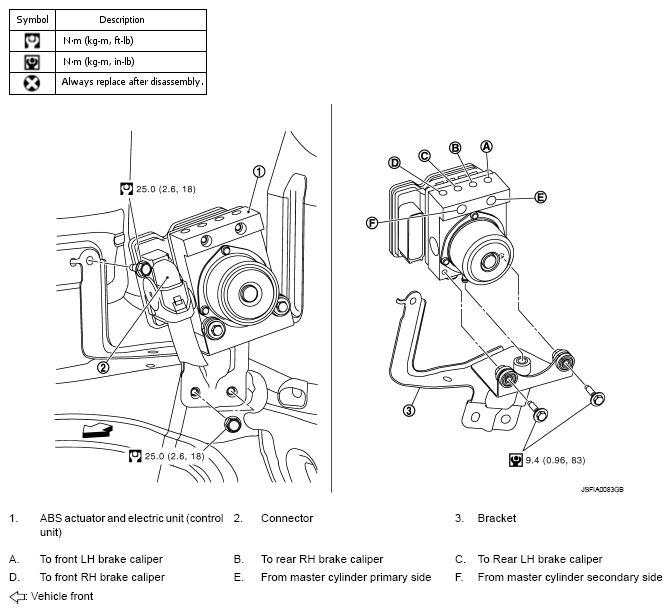

Fig 1: Exploded View Of ABS Actuator And Electric Unit With Torque Specifications (Control Unit)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
