Exploded View: Disassembly

Type: LR1110-713C

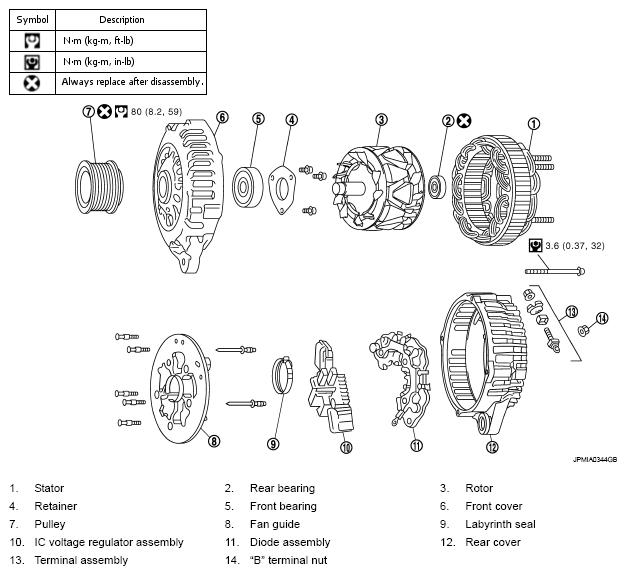

Fig 1: Exploded View Of Alternator With Torque Specifications
G05372906
