Exploded View: Disassembly

Type: M000TA0271

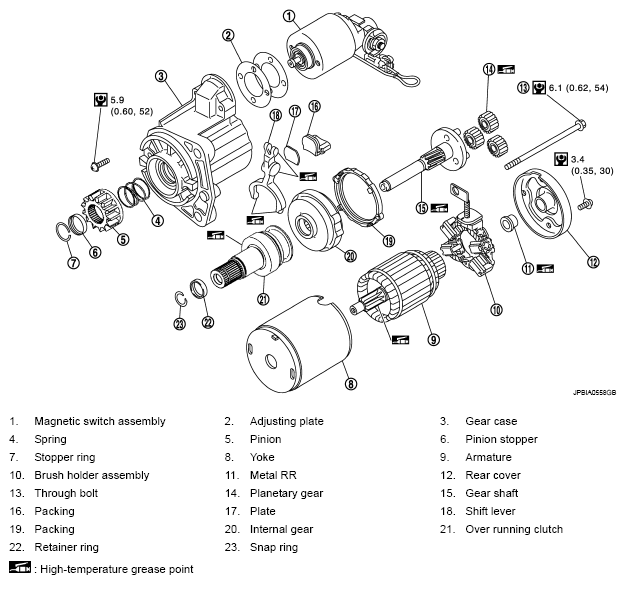

Fig 1: Disassembling View Of Starter Motor With Torque Specifications (2WD)
G05369421Courtesy of NISSAN MOTOR CO., U.S.A.
