Exploded View
›
Disassembly
Exploded View: Disassembly
Type: M000TA0271

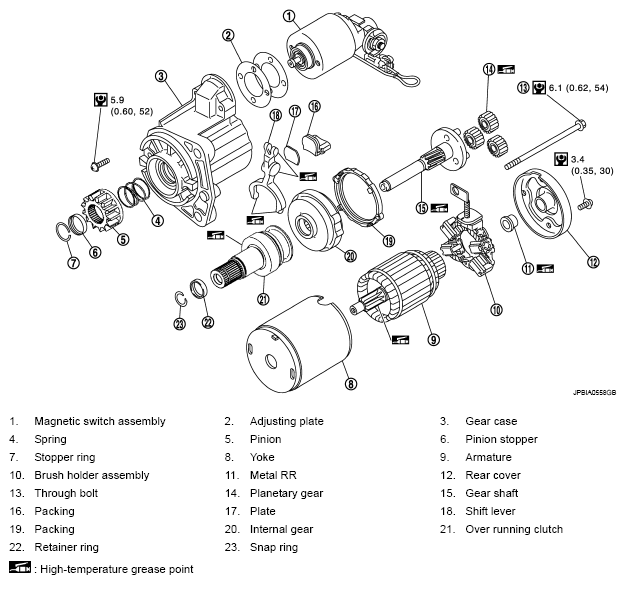

Fig 1: Disassembling View Of Starter Motor With Torque Specifications (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
