Engine Control System - Introduction (MR20DE)
›
Trouble Diagnosis - Specifications Value
›
Diagnostic Procedure
›
Overall Sequence
Overall Sequence

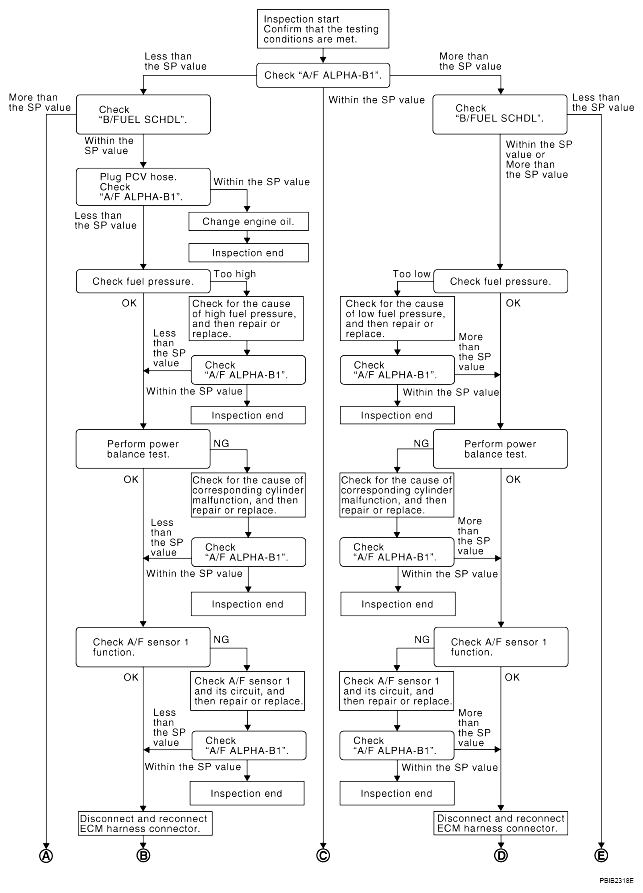

Fig 1: Overall Sequence Diagnostic Procedure (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

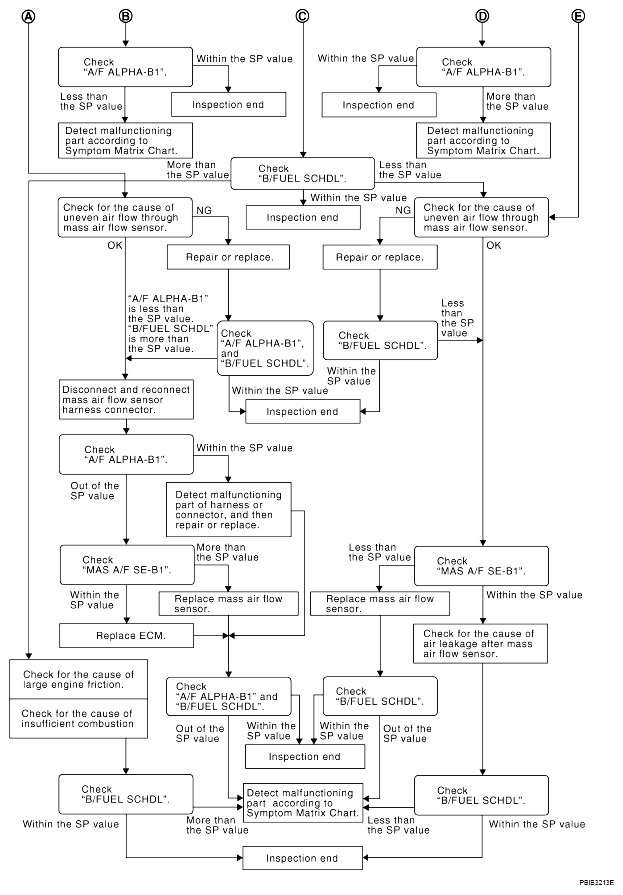

Fig 2: Overall Sequence Diagnostic Procedure (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
