Can Communication System Description
›
Schematic
Can Communication System Description: Schematic

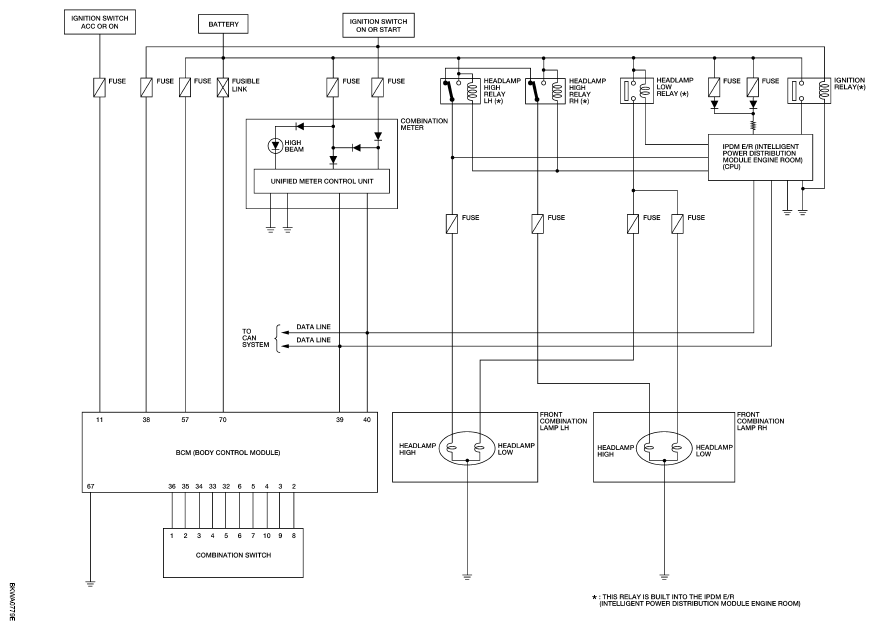

Fig 1: Headlamp (USA) - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
