Front Door Lock
›
Component Parts Location
Component Parts Location

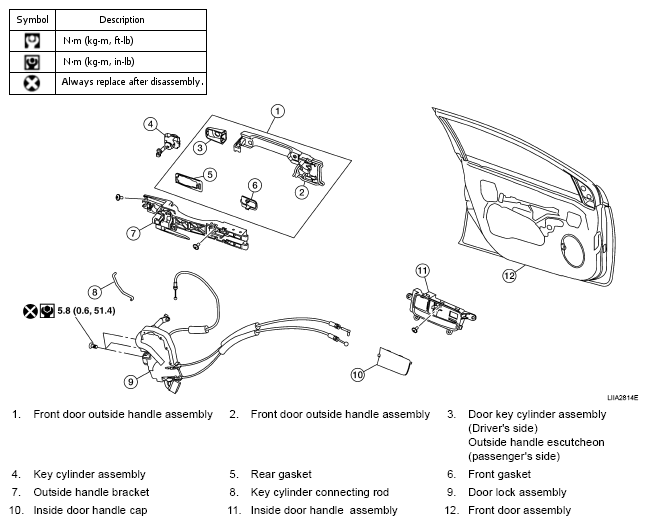

Fig 1: Exploded View Of Front Door Lock Component With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
