Preliminary Check

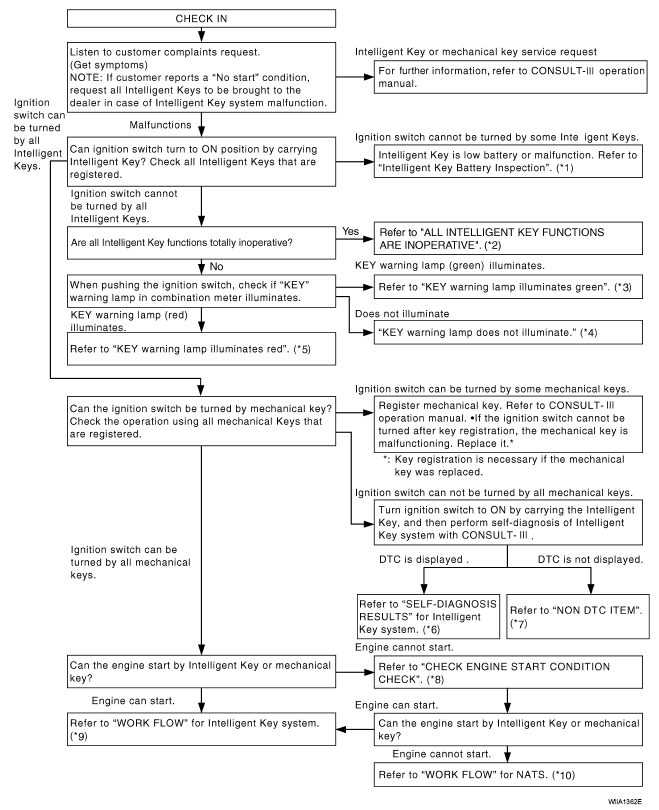

Fig 1: Trouble Diagnosis Flow Chart (1 Of 2)

G04927643

Courtesy of NISSAN MOTOR CO., U.S.A.

TROUBLE DIAGNOSIS FLOW CHART REFERENCES (1 OF 2)

*1. INTELLIGENT KEY BATTERY REPLACEMENT

*2. TROUBLE DIAGNOSIS SYMPTOM CHART

*3. TROUBLE DIAGNOSIS SYMPTOM CHART

*4. KEY WARNING LAMP DOES NOT ILLUMINATE

*5. TROUBLE DIAGNOSIS SYMPTOM CHART

*6. CONSULT-III FUNCTION (INTELLIGENT KEY)

*7. KEY WARNING LAMP DOES NOT ILLUMINATE

*8. KEY WARNING LAMP DOES NOT ILLUMINATE
