Wiring Diagram - KEYLES -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: Wiring Diagram - BL-KEYLES-01
G04927589Courtesy of NISSAN MOTOR CO., U.S.A.

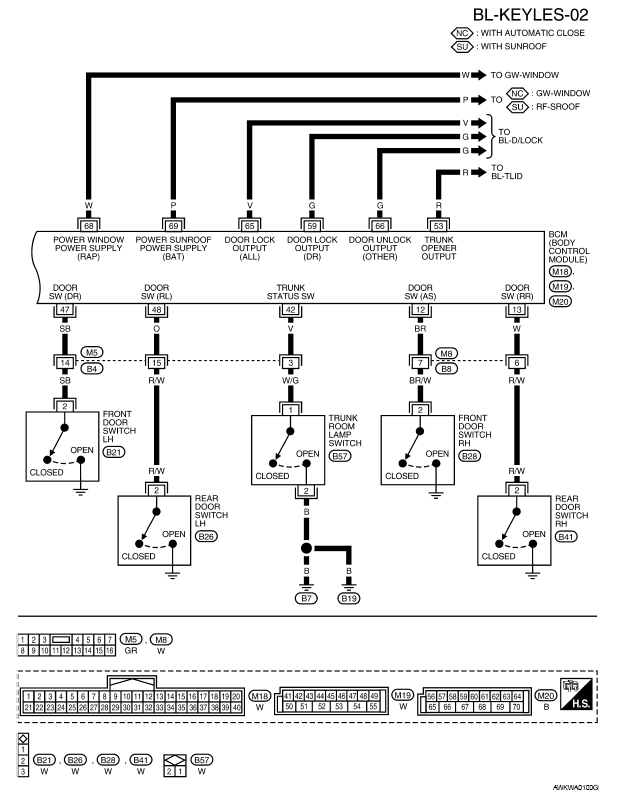

Fig 2: Wiring Diagram - BL-KEYLES-02
G00465450Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Wiring Diagram - BL-KEYLES-03
G04927591Courtesy of NISSAN MOTOR CO., U.S.A.
