Rear Window Defogger: Schematic

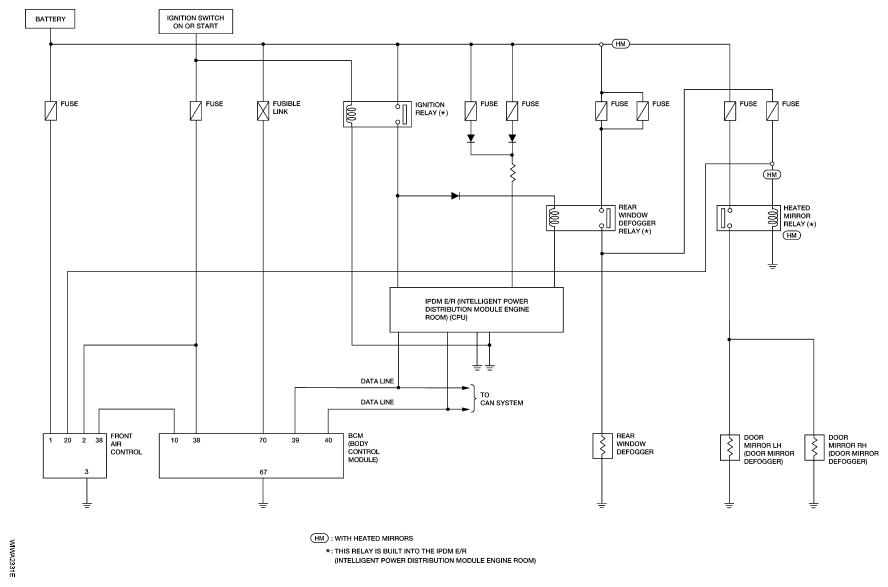

Fig 1: Rear Window Defogger - Schematic Diagram
G04927936Courtesy of NISSAN MOTOR CO., U.S.A.
