Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

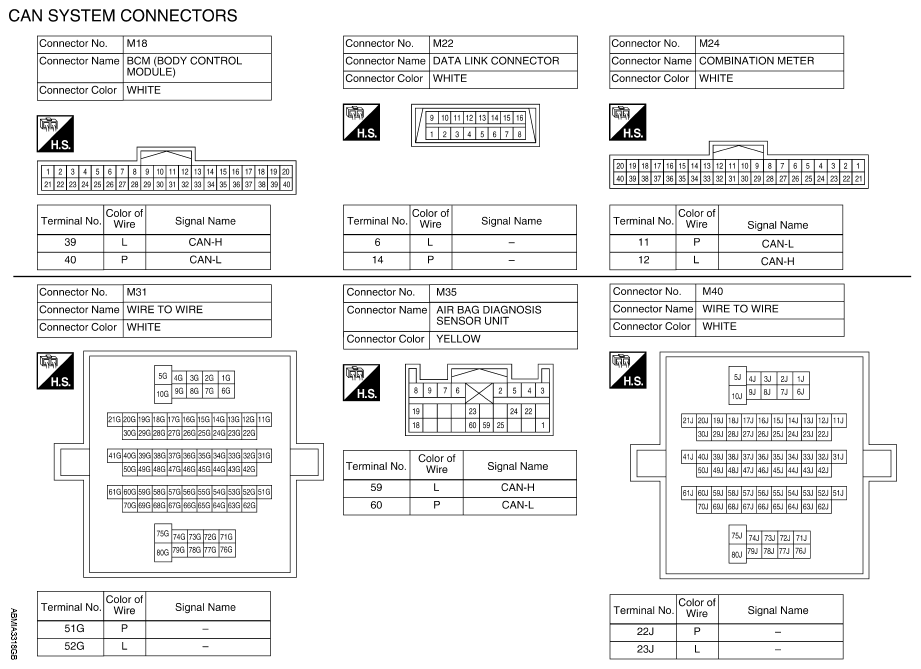

Fig 1: Identifying CAN System Connectors (1 Of 6)

G08169117

Courtesy of NISSAN NORTH AMERICA, INC.

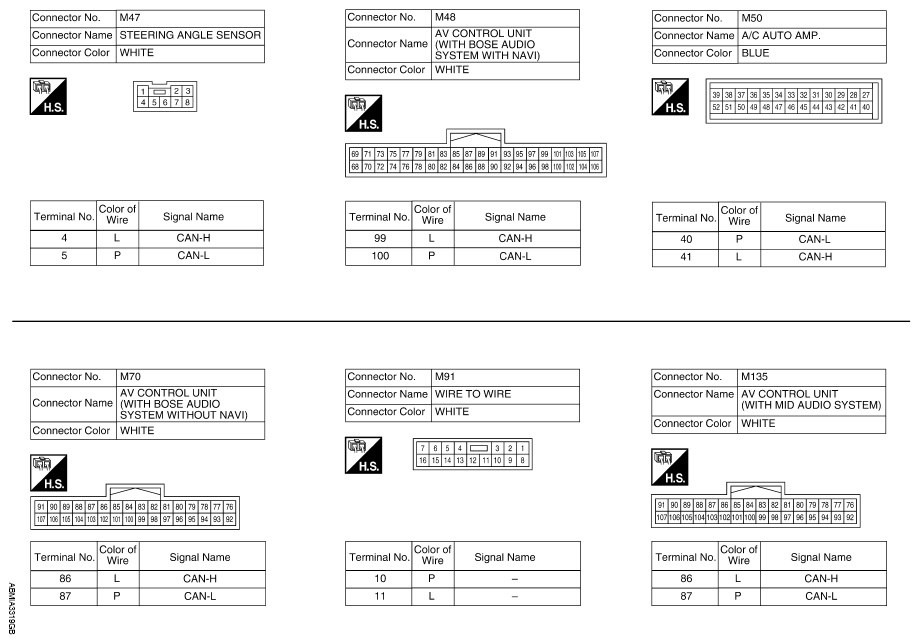

Fig 2: Identifying CAN System Connectors (2 Of 6)

G08169118

Courtesy of NISSAN NORTH AMERICA, INC.

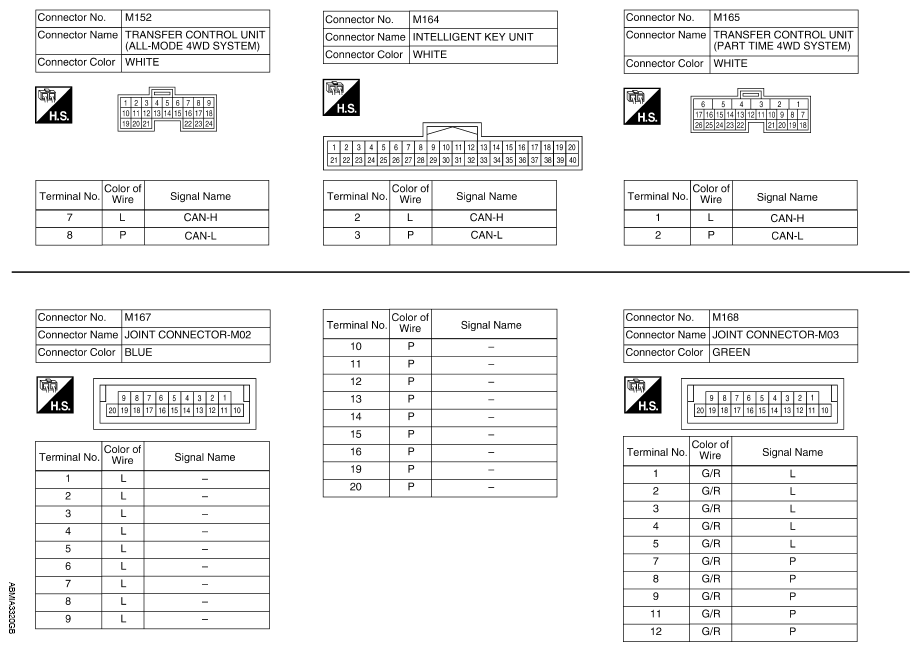

Fig 3: Identifying CAN System Connectors (3 Of 6)

G08169119

Courtesy of NISSAN NORTH AMERICA, INC.

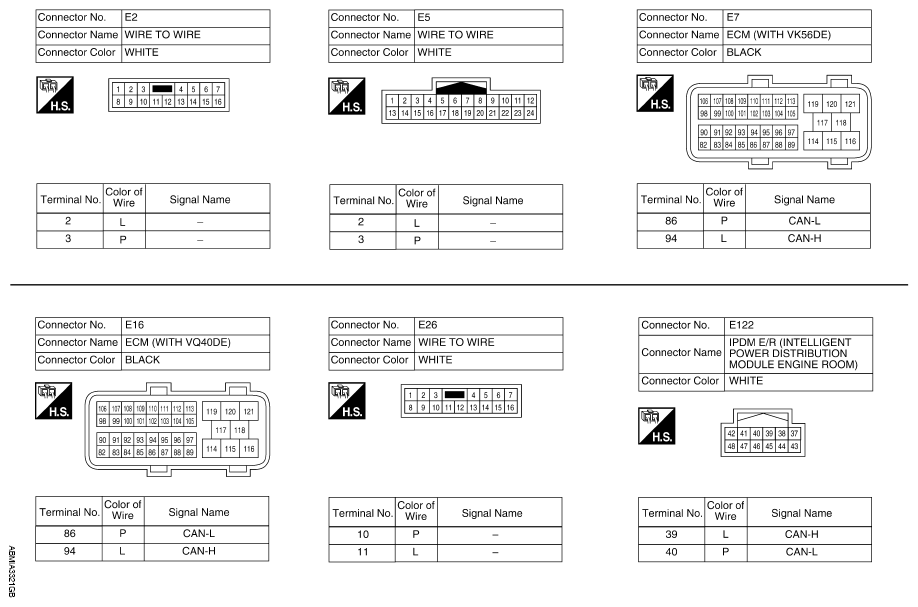

Fig 4: Identifying CAN System Connectors (4 Of 6)

G08169120

Courtesy of NISSAN NORTH AMERICA, INC.

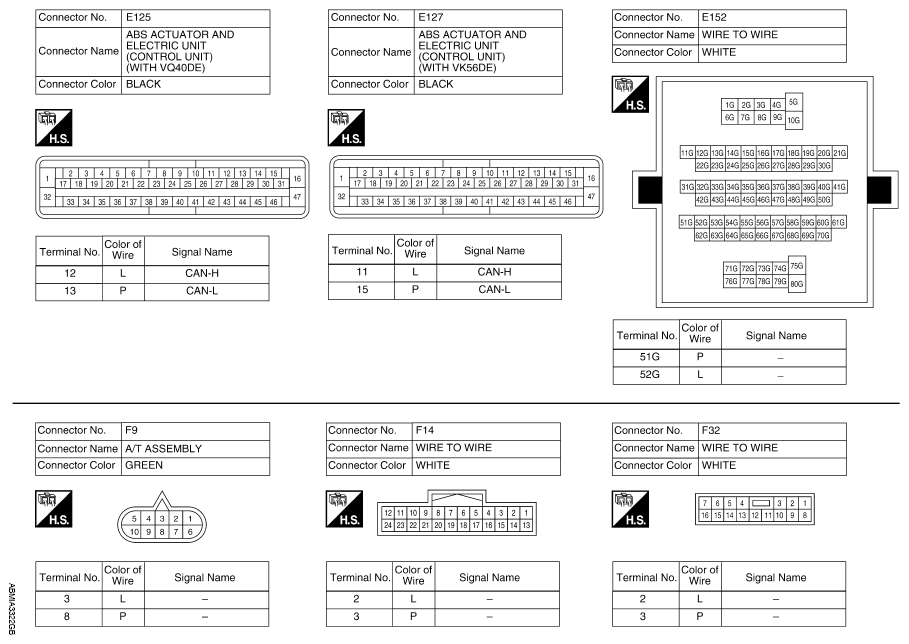

Fig 5: Identifying CAN System Connectors (5 Of 6)

G08169121

Courtesy of NISSAN NORTH AMERICA, INC.

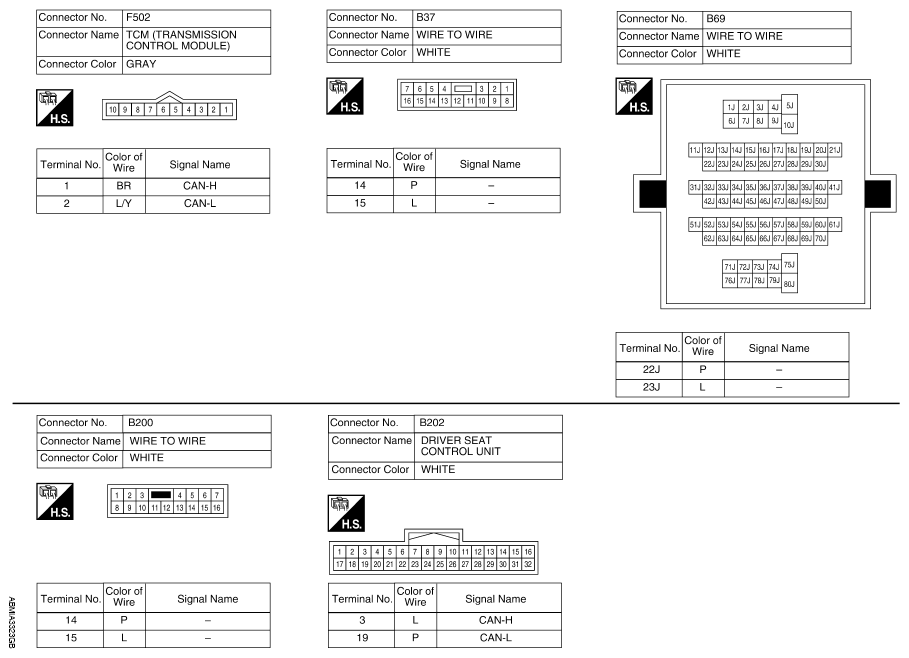

Fig 6: Identifying CAN System Connectors (6 Of 6)

G08169122

Courtesy of NISSAN NORTH AMERICA, INC.
