Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, release the metal clip and pawls, then lift the rear power window switch and finisher (2) upward as an assembly from the rear door finisher.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connector, then remove the assembly from the rear door finisher.
  3. Release the two tabs (A), one on each side, then separate the rear power window switch (1) from the rear power window switch finisher (2).

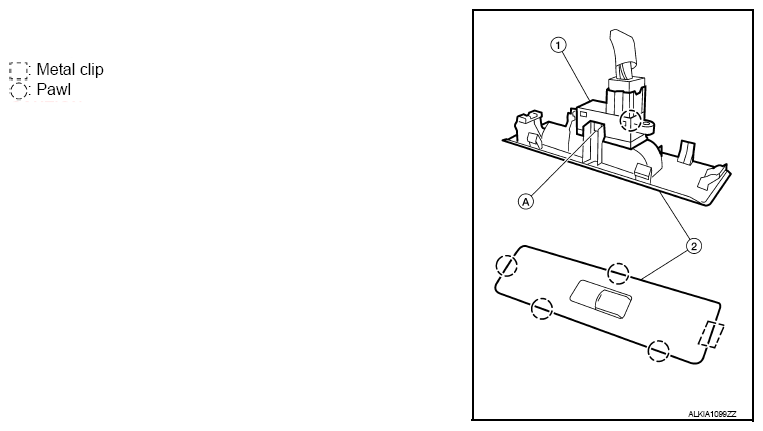

    Fig 1: Identifying Rear Power Window Switch, Switch Finisher And Tabs
    G08168510Courtesy of NISSAN NORTH AMERICA, INC.
