Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

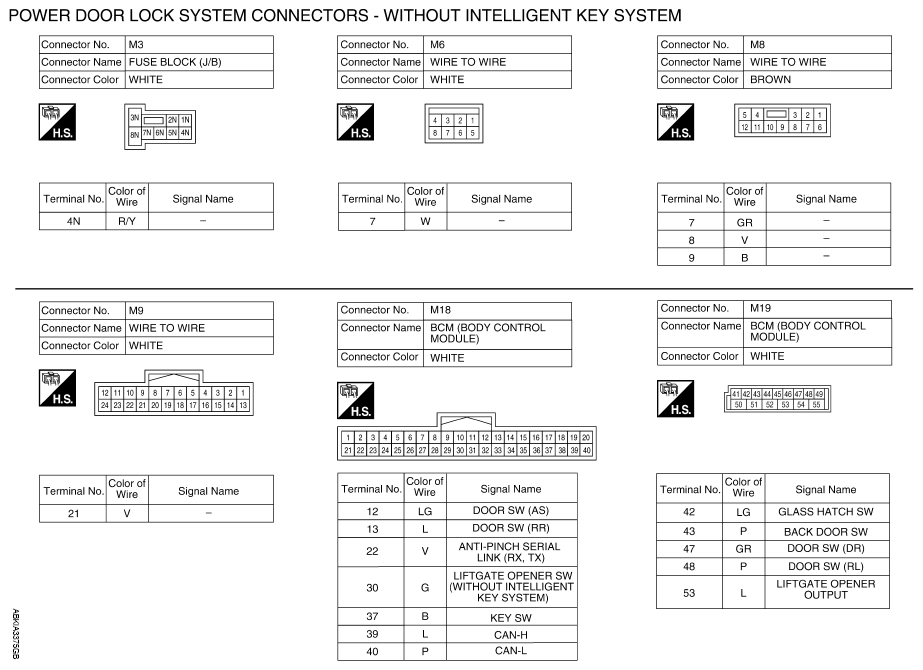

Fig 1: Identifying Power Door Lock System Connectors Without Intelligent Key System (1 Of 10)

G08168167

Courtesy of NISSAN NORTH AMERICA, INC.

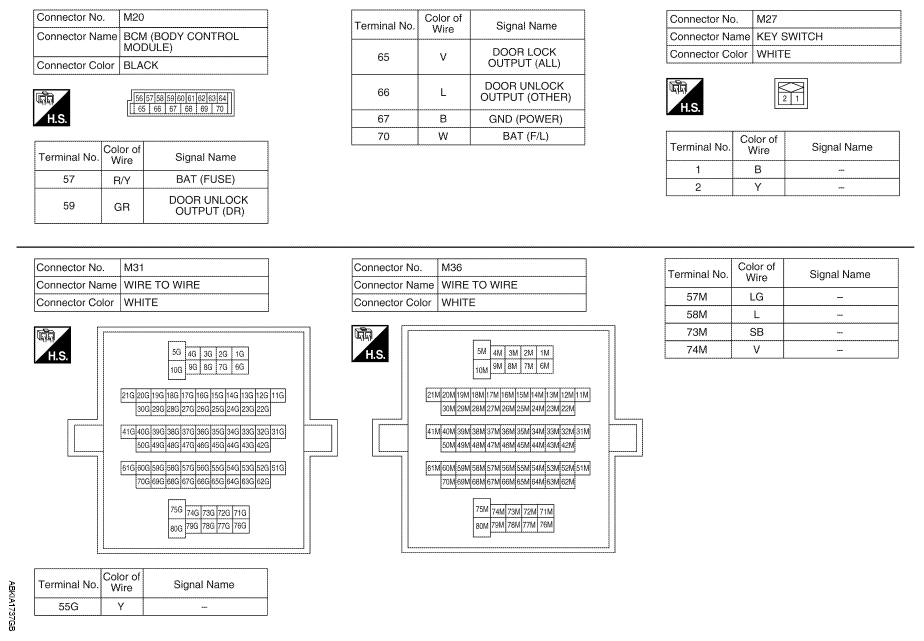

Fig 2: Identifying Power Door Lock System Connectors Without Intelligent Key System (2 Of 10)

G06606727

Courtesy of NISSAN NORTH AMERICA, INC.

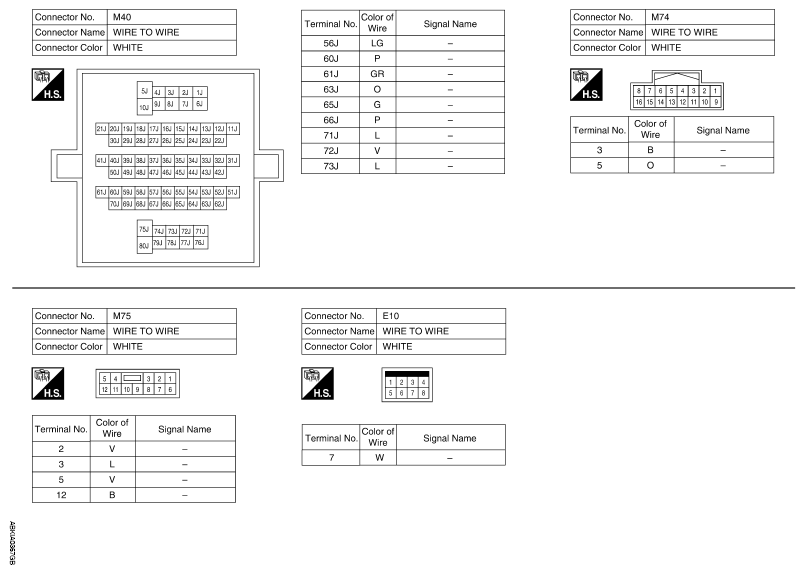

Fig 3: Identifying Power Door Lock System Connectors Without Intelligent Key System (3 Of 10)

G05941679

Courtesy of NISSAN NORTH AMERICA, INC.

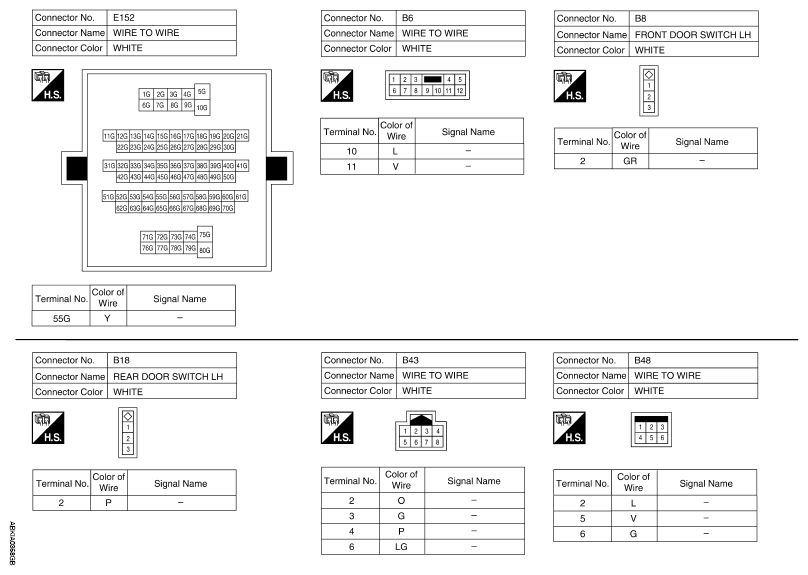

Fig 4: Identifying Power Door Lock System Connectors Without Intelligent Key System (4 Of 10)

G05941680

Courtesy of NISSAN NORTH AMERICA, INC.

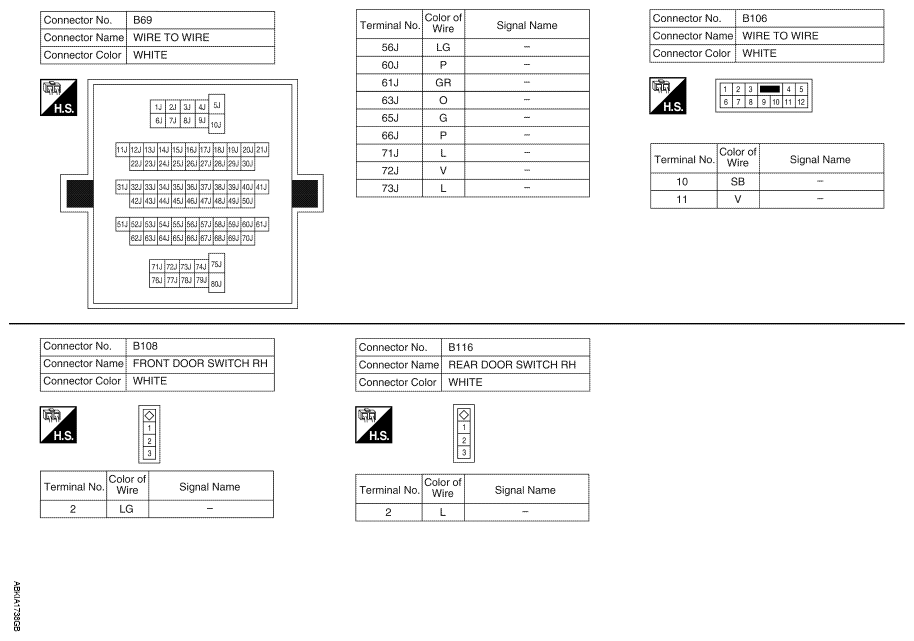

Fig 5: Identifying Power Door Lock System Connectors Without Intelligent Key System (5 Of 10)

G06606730

Courtesy of NISSAN NORTH AMERICA, INC.

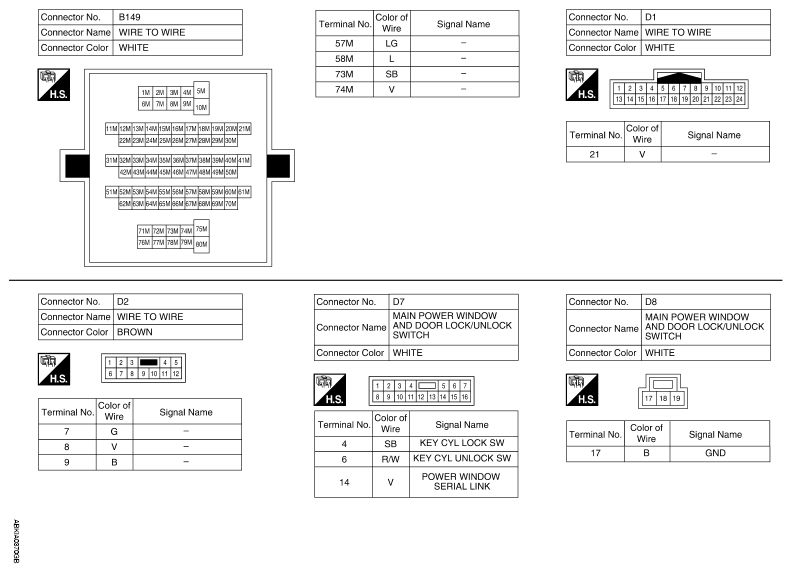

Fig 6: Identifying Power Door Lock System Connectors Without Intelligent Key System (6 Of 10)

G05941682

Courtesy of NISSAN NORTH AMERICA, INC.

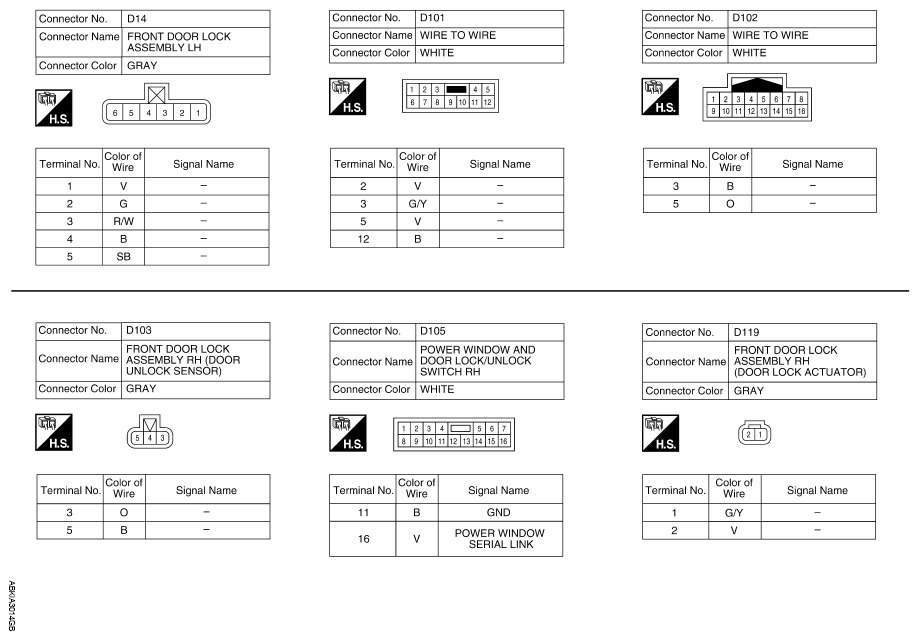

Fig 7: Identifying Power Door Lock System Connectors Without Intelligent Key System (7 Of 10)

G07149246

Courtesy of NISSAN NORTH AMERICA, INC.

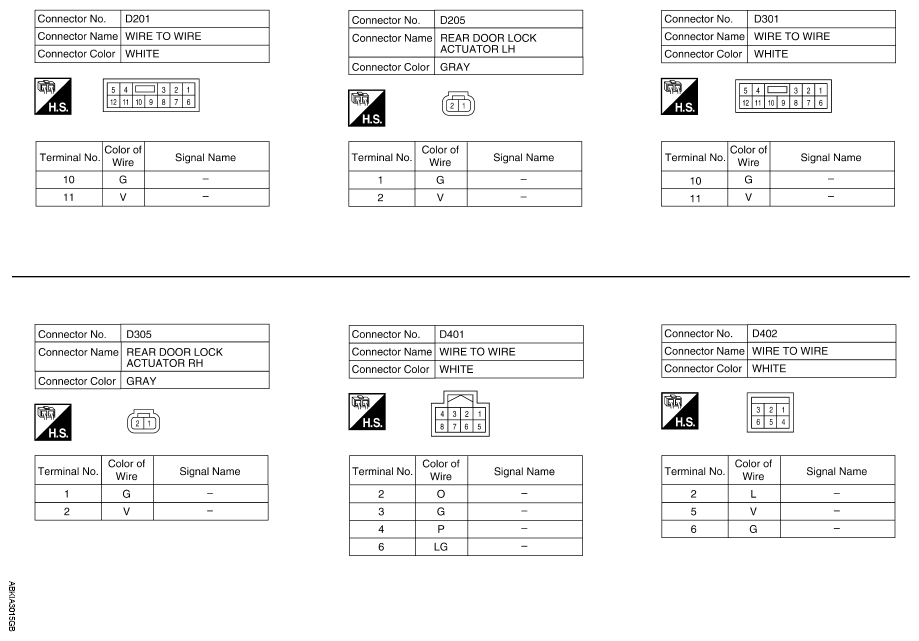

Fig 8: Identifying Power Door Lock System Connectors Without Intelligent Key System (8 Of 10)

G07149247

Courtesy of NISSAN NORTH AMERICA, INC.

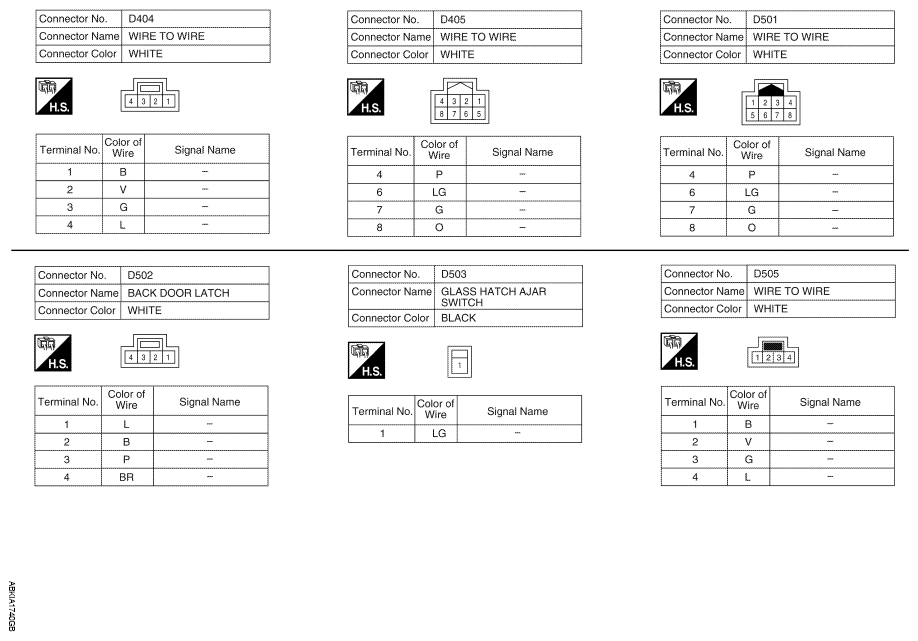

Fig 9: Identifying Power Door Lock System Connectors Without Intelligent Key System (9 Of 10)

G06606734

Courtesy of NISSAN NORTH AMERICA, INC.

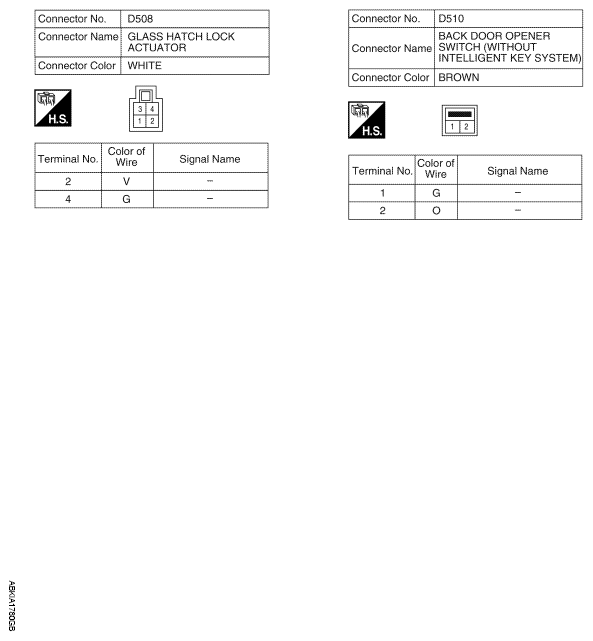

Fig 10: Identifying Power Door Lock System Connectors Without Intelligent Key System (10 Of 10)

G06606735

Courtesy of NISSAN NORTH AMERICA, INC.
