Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

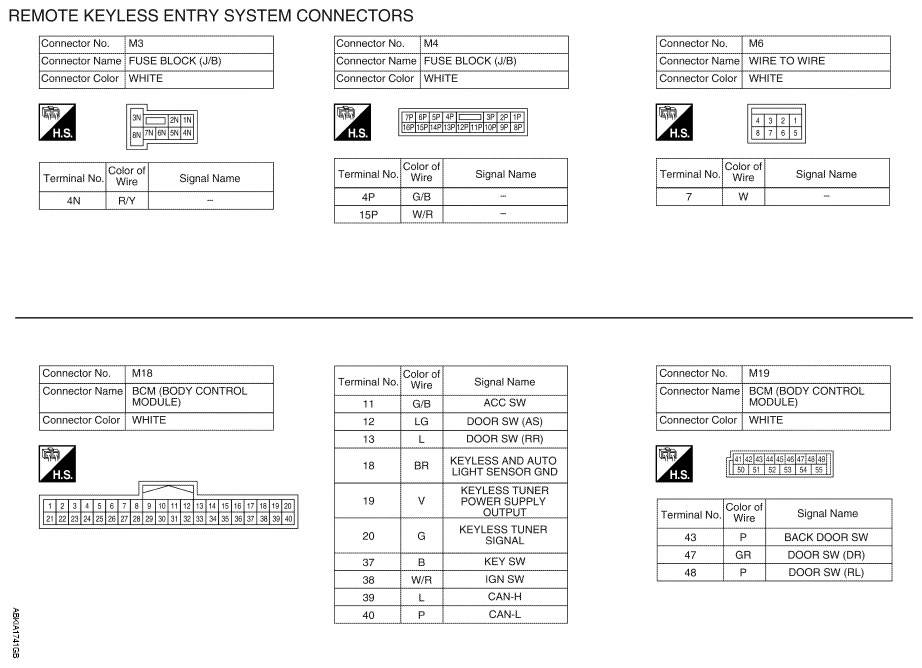

Fig 1: Identifying Remote Keyless Entry System Connectors (1 Of 8)

G06606739

Courtesy of NISSAN NORTH AMERICA, INC.

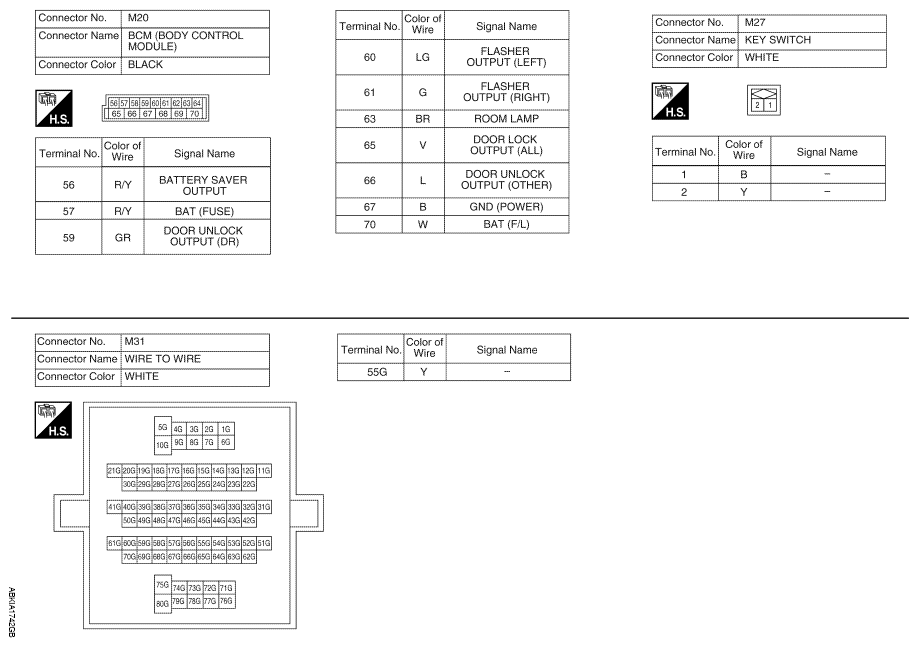

Fig 2: Identifying Remote Keyless Entry System Connectors (2 Of 8)

G06606740

Courtesy of NISSAN NORTH AMERICA, INC.

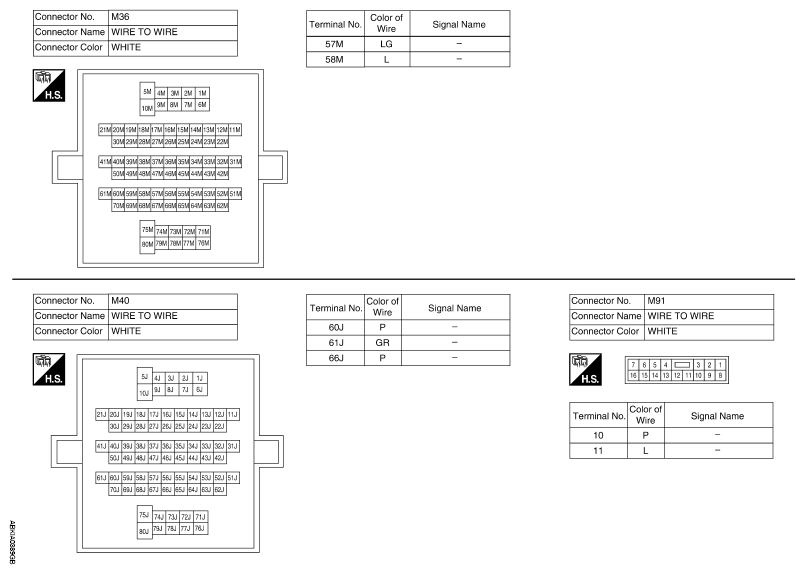

Fig 3: Identifying Remote Keyless Entry System Connectors (3 Of 8)

G05941692

Courtesy of NISSAN NORTH AMERICA, INC.

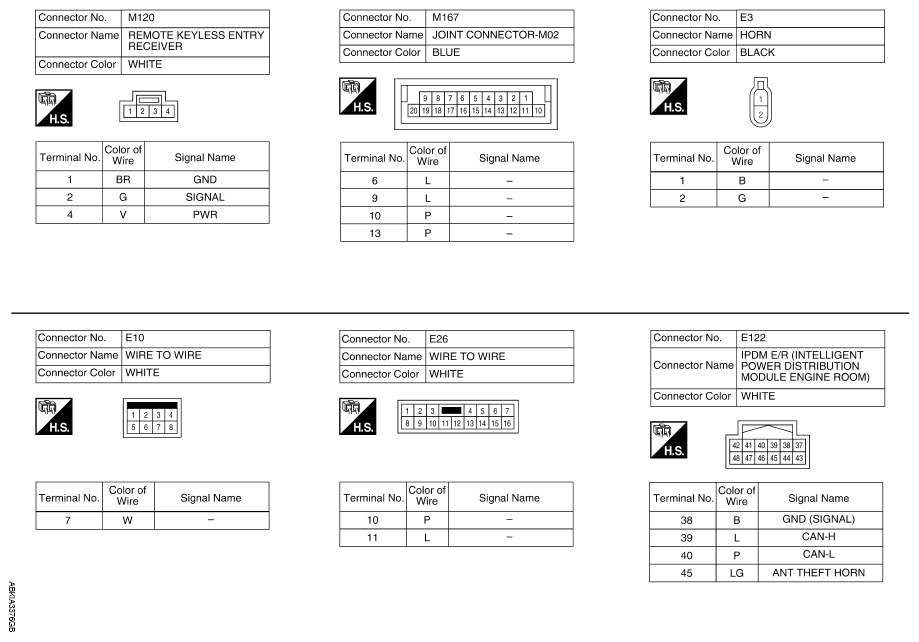

Fig 4: Identifying Remote Keyless Entry System Connectors (4 Of 8)

G08168183

Courtesy of NISSAN NORTH AMERICA, INC.

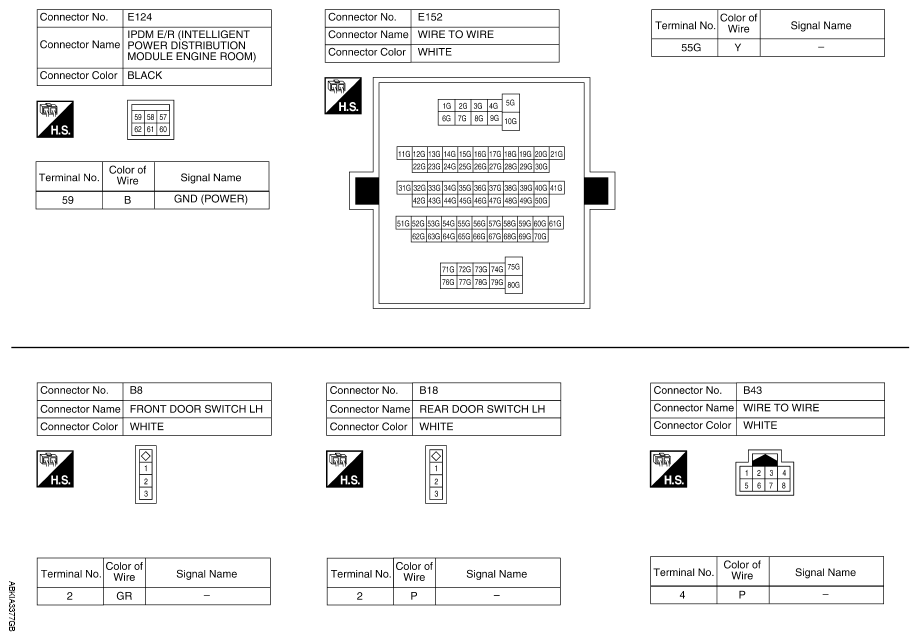

Fig 5: Identifying Remote Keyless Entry System Connectors (5 Of 8)

G08168184

Courtesy of NISSAN NORTH AMERICA, INC.

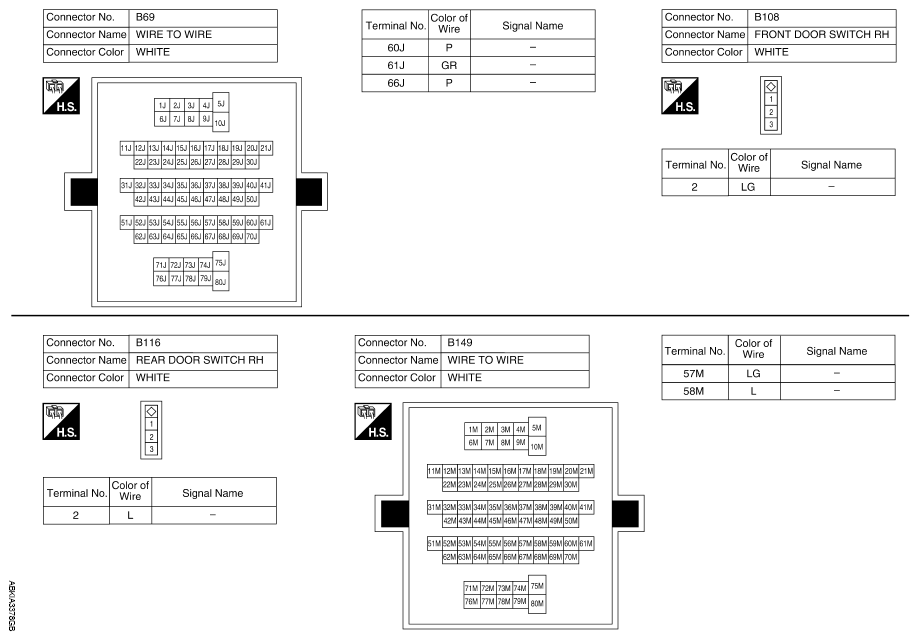

Fig 6: Identifying Remote Keyless Entry System Connectors (6 Of 8)

G08168185

Courtesy of NISSAN NORTH AMERICA, INC.

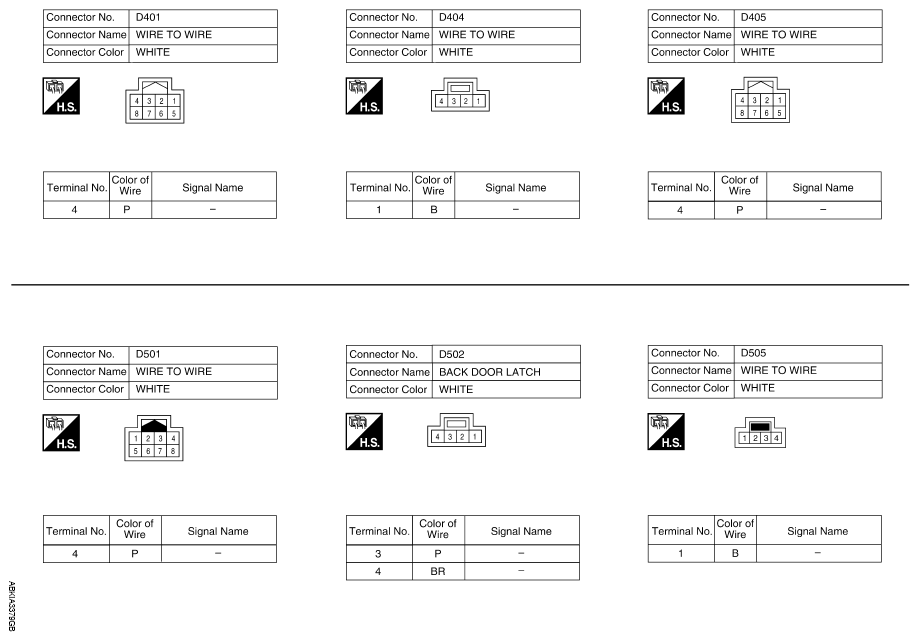

Fig 7: Identifying Remote Keyless Entry System Connectors (7 Of 8)

G08168186

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Remote Keyless Entry System Connectors (8 Of 8)

G08168187

Courtesy of NISSAN NORTH AMERICA, INC.
