Rear Disc Brake: Component

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

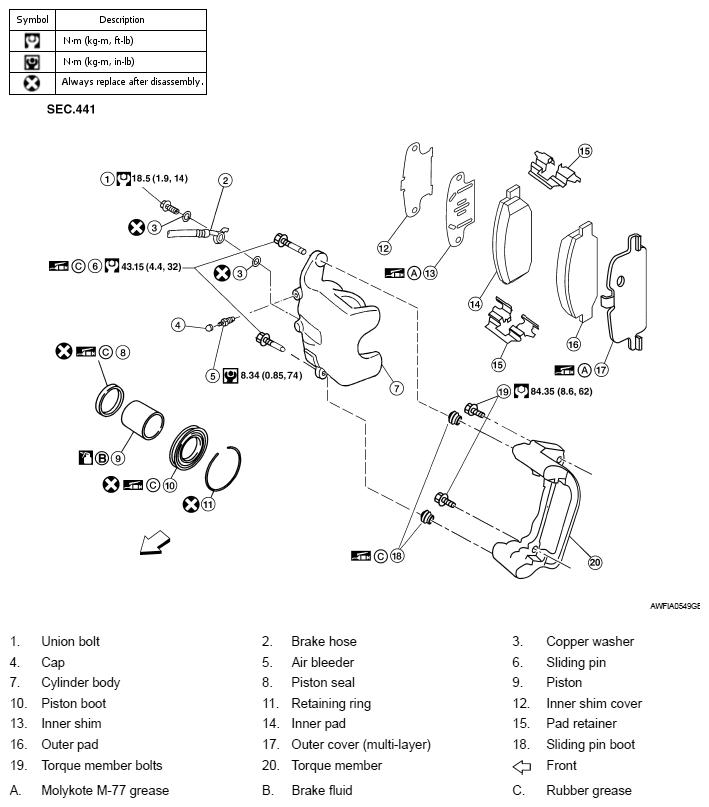

Fig 1: Exploded View Of Rear Disc Brake With Torque Specifications
G05924504Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Clean dust with a vacuum dust collector. Do not blow with compressed air.
  • Make sure parking brake lever is released completely.
