Section 2 (Engine Cooling System (MR20DE)): Radiator: Components

WARNING: This page is about a different variant/trim than selected.

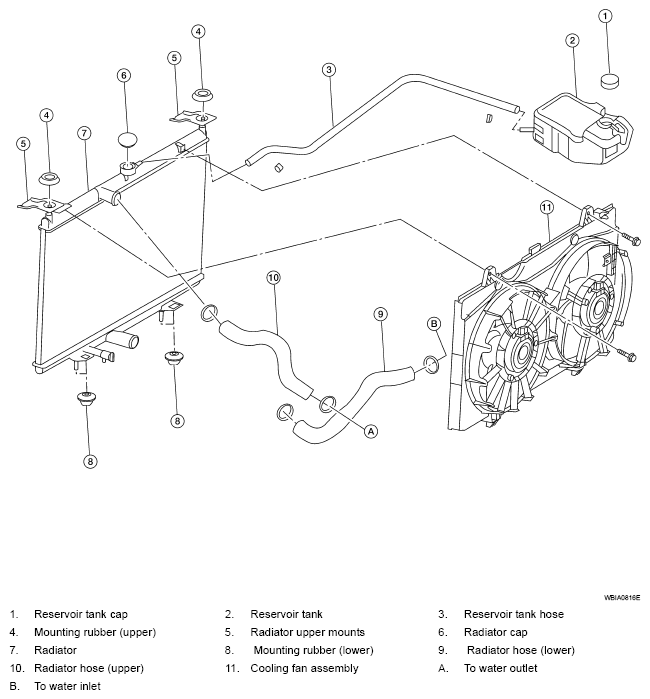

Fig 1: Identifying Radiator Components
G04925020Courtesy of NISSAN MOTOR CO., U.S.A.
