Rear Suspension Assembly: Components

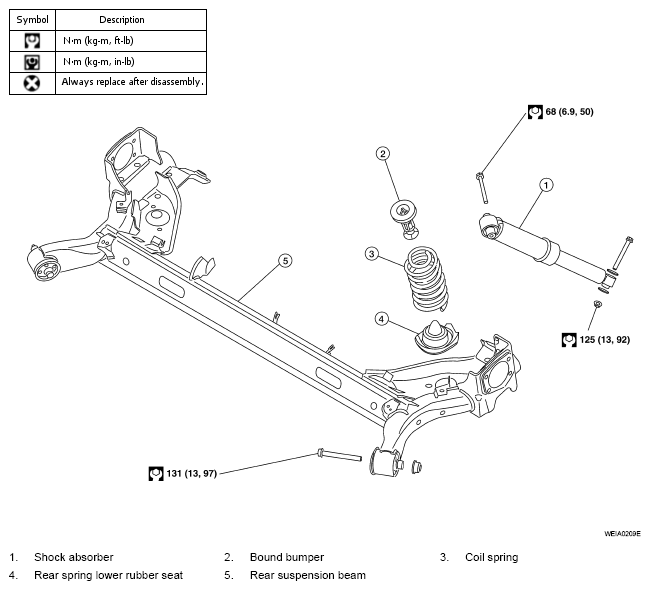

Fig 1: Rear Suspension Assembly With Torque Specifications
G04927247Courtesy of NISSAN MOTOR CO., U.S.A.
