Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
  Refer to "GROUND INSPECTION ".

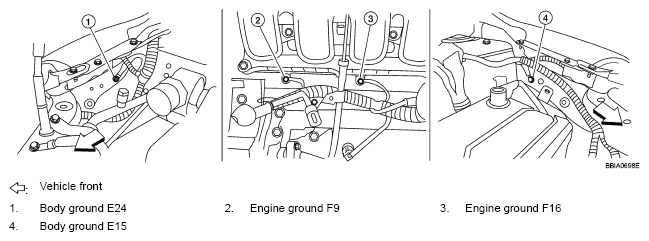

  Fig 1: Identifying Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK >> GO TO 2.

NG >> Repair or replace ground connections.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor (1) harness connector.
2. Turn ignition switch ON.

  Fig 2: Identifying Accelerator Pedal Position (APP) Sensor Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between APP sensor terminal 5 and ground with CONSULT-II or tester.
  Voltage: Approximately 5V
OK or NG

OK >> GO TO 6.

NG >> GO TO 3.

Fig 3: Checking Voltage Between APP Sensor Terminal 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 5 and ECM terminal 102.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
OK or NG

OK >> GO TO 4.

NG >> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK COMPONENTS POWER SUPPLY CIRCUIT

Check harness for short to power and short to ground, between the following terminals.

ECM TERMINAL WIRING REFERENCE

ECM terminal	Sensor terminal	Reference
74	Refrigerant pressure sensor terminal 3	"WIRING DIAGRAM "
75	Crankshaft position sensor (POS) terminal 1	"WIRING DIAGRAM "
76	EVAP control system pressure sensor terminal 3	"WIRING DIAGRAM "
102	APP sensor terminal 5	"WIRING DIAGRAM "

OK or NG

OK >> GO TO 5.

NG >> Repair short to ground or short to power in harness or connectors.

CHECK COMPONENTS
Check the following.
- Crankshaft position sensor (POS) (Refer to "COMPONENT INSPECTION ".)
- EVAP control system pressure sensor (Refer to "COMPONENT INSPECTION ".)
- Refrigerant pressure sensor (Refer to "TROUBLE DIAGNOSIS ".)
OK or NG

OK >> GO TO 10.

NG >> Replace malfunctioning component.
CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 104 and APP sensor terminal 1.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG

OK >> GO TO 7.

NG >> Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 103 and APP sensor terminal 6.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG

OK >> GO TO 8.

NG >> Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK >> GO TO 10.

NG >> GO TO 9.
REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
4. Perform "IDLE AIR VOLUME LEARNING ".
  >> INSPECTION END
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

>> INSPECTION END
