Mil And Data Link Connector: Wiring Diagram

NOTE: For references to "PG-Power", see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article.

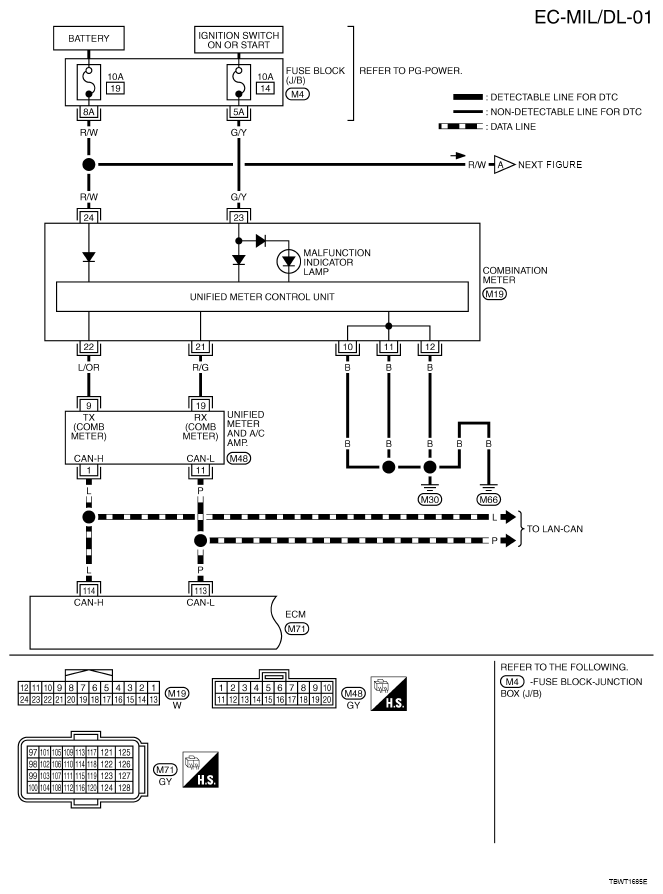

Fig 1: EC-MIL/DL-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

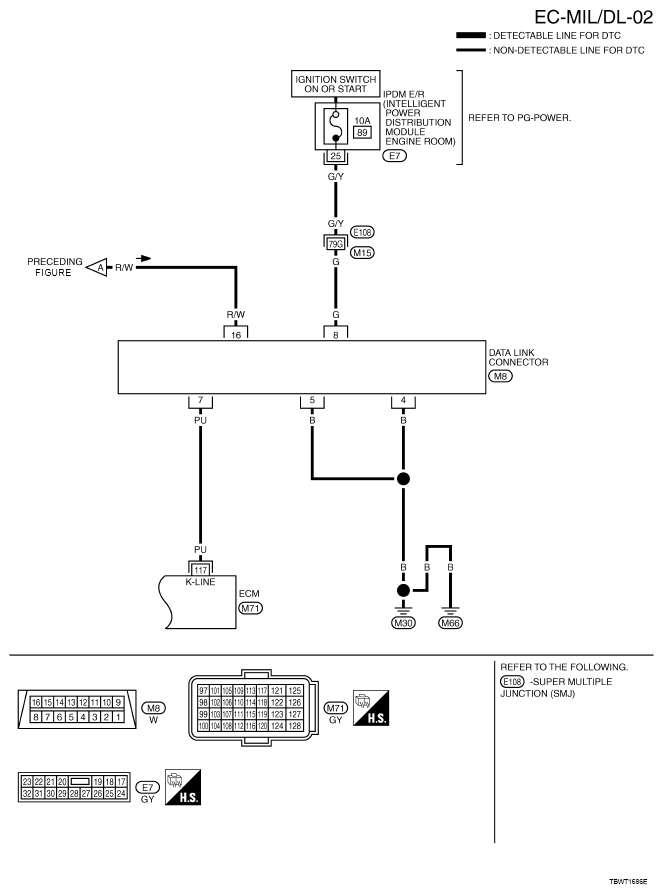

Fig 2: EC-MIL/DL-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
